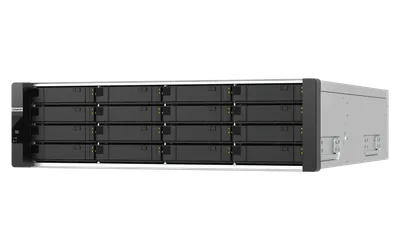

ES1686Adc

Typ

NAS

Vikt

23.82 kg

Kylning

Hot-swappable fan module (60*60*38mm; 16000RPM/12v/2.8A x 3)

U.2-platser

16

Kontroller

Intel Xeon D-2142IT 8-core 1.90 GHz processor (burst up to 3.0 GHz) per controller

Dimensioner

132 446.2 587.75 mm

3.5"-fack

16

Ethernet-portar

6

Värdanslutning

Ethernet

Diskgränssnitt

SAS + SATA + U.2 NVMe

Max Ethernet-hastighet

10 Gbps

Övriga specifikationer

Buttons

Power, Reset

PCIe Slot

2 per controller Slot 1: PCIe Gen 3 x8 (CPU) Slot 2: PCIe Gen 3 x8 (CPU) Card dimensions for PCIe slot 1~Slot 2：215 x 68.9 x 18.76 mm / 8.46 x 2.71 x 0.74 inches. Wider cards can be installed if the next PCIe slot will not be used.

Form Factor

3U Rackmount

Jumbo Frame

Yes

Memory Slot

16 x R-DIMM/LR-DIMM DDR4 8 x R-DIMM/LR-DIMM DDR4 per controller IMPORTANT: You can only use one type of dual in-line memory module (DIMM) at a time. Do not use Registered DIMM (RDIMM) with Load Reduced DIMM (LRDIMM) memory.

Flash Memory

4GB (Dual boot OS protection)

Hot-swappable

Yes

System Memory

64 GB RDIMM DDR4 ECC per controller

LED Indicators

System Power LED (Green): on/off System Status (Green/ Red): in operation, system errors, low power, degraded RAID mode, memory failure, fan/power supply failure, system/disk temperature too high, storage pool reaching threshold value, system performing take-over, power supply unit unplugged LCD Status Display (Two-digit number): Status of JBOD connection
