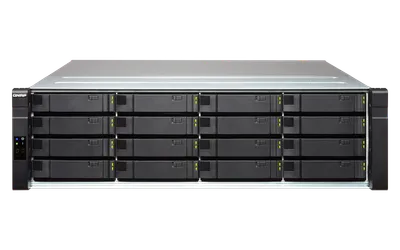

ES1640dc v2

Typ

NAS

Vikt

26.75 kg

Kylning

Hot-swappable fan module (60*60*38mm; 16000RPM/12v/2.8A x 3)

Kontroller

Intel Xeon E5-2400 v2 family processor Intel Xeon 6-core Processor E5-2420 v2 (15M Cache, 2.20GHz)

Dimensioner

132 446.2 618 mm

3.5"-fack

16

Ethernet-portar

6

Värdanslutning

Ethernet

Diskgränssnitt

SAS

Max Ethernet-hastighet

10 Gbps

Övriga specifikationer

Buttons

Power, Reset

PCIe Slot

PCIe Slot x8 (Gen 3 x8): Pre-installed with a LAN-10G2T-X550 NIC (2 x 10GbE RJ45 ports), replacable with a 40GbE NIC PCIe Slot x4 (Gen 2 x4): Pre-installed with a dual-port Mini-SAS adapter

ES1640dc v2

Ethernet cable (10GbE) x 4 Ethernet cable (1GbE) x 2

Form Factor

3U Rackmount

Jumbo Frame

Yes

Memory Slot

3 x RDIMM DDR3 for each controller 32GB Main Memory + 16GB write cache PER CONTROLLER.

Flash Memory

2 GB

Hot-swappable

Yes

System Memory

48 GB RDIMM DDR3 ECC per controller

LED Indicators

System Power LED (Green): on/off System Status (Green/ Red): in operation, system errors, low power, degraded RAID mode, memory failure, fan/power supply failure, system/disk temperature too high, storage pool reaching threshold value, system performing take-over, power supply unit unplugged LCD Status Display (Two-digit number): Status of JBOD connection
