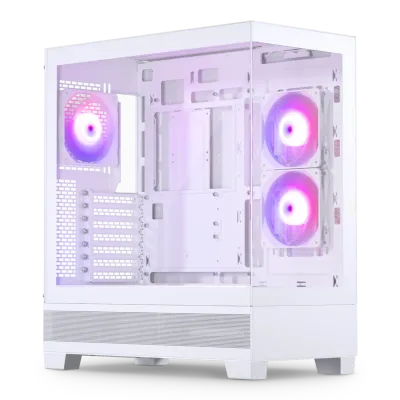

XT View Matrix | White

Djup

454 mm

Bredd

228 mm

Höjd

588 mm

Volym

60.9 L

Vikt

7.91 kg

Front I/O

USB 3.x Type-C x 2, Microphone x 2

Chassityp

Mid Tower

Material

Aluminum, Metal, Plastic, Glass

Dimensioner

454 228 588 mm

Formfaktor

Mini-ITX, Micro-ATX, ATX, E-ATX

Max 120 mm-fläktar

9

Max 140 mm-fläktar

3

2.5"-fack

2

3.5"-fack

2

Medföljande fläktar

1x XT View chassis 3x M25-120 D-RGB

Max GPU-längd

415 mm

Max PSU-längd

270 mm

Sidopanel

Tempered Glass

Expansionsplatser

7

Max kylarhöjd

184 mm

Radiatorstöd (topp)

360 mm

Övriga specifikationer

Fans Top

3x | 2x

Fans Rear

1x | 1x

Fans Side

2x | -

Fans Front

- | -

Extra Screws

30x Mainboard | SSD screws 4x Power supply screws 8x HDD screws 4x Thumb screws 4x Fan Screws 30 mm UNC6-32 1x Mainboard stand-off

Fans Midplate

3x | -

General Color

White

Extra Warranty

5 Years Limited | Learn more

Radiators Rear

120 | -

Radiators Side

Max. 240* | - | *Only with vertical GPU bracket

Extra Accessory

30x Zip ties

Fans Total Fans

120 mm | 140 mm | 9x | 3x

General UPC Code

886523303183

General Model No.

PH-XT523V1_DWT01

Extra Gross Weight

9.51 kg | 20.97 lbs

Fans 120 | 140 Top

3 | 2

Radiators Midplate

- | -

Extra Accessory Box

30x Zip ties 1x Stand-off removal tool 1x D-RGB mainboard adapter 500 mm

Fans 120 | 140 Rear

1 | 1

Fans 120 | 140 Side

2 | -

Fans 120 | 140 Front

- | -

Fans 120 | 140 Bottom

3 | -

Clearance Top Radiator

Length x Width x Height | 415 x 138 x 60 mm | 16.33 x 5.43 x 2.36 in

Radiator 120 | 140 Top

Max. 360 | -

Clearance Side Radiator

Length x Width | 305 x 120 x 62 mm | 12.00 x 4.72 x 2.44 in | *Only with vertical GPU bracket

Extra Scope of Delivery

1x XT View Matrix chassis 1x Storage bracket Pre-installed

Radiator 120 | 140 Rear

- | -

Radiator 120 | 140 Side

Max. 240 Only with vertical GPU bracket | -

Clearance Front Radiator

Length x Width | -

Radiator 120 | 140 Front

- | -

Matrix Display Connectors

Mainboard USB 2.0 header 500 mm SATA 500 mm

Matrix Display LED Amount

600

Radiator 120 | 140 Bottom

- | -

Clearance Top 360 Radiator

Length x Width x Height | 415 x 138 x 60 mm | 16.34 x 5.43 x 2.36 in

Matrix Display Power Input

5V | 4.3A

Clearance Midplate Radiator

Length x Width | -

Clearance Side 240 Radiator

Length x Width x Height | 305 x 120 x 62 mm | 12.00 x 4.72 x 2.44 in Only with vertical GPU bracket

General Vertical GPU Support

Yes | Riser cable & bracket sold separately

General Rear Mainboard Support

MSI Project Zero | ASUS BTF | Gigabyte Project Stealth

Matrix Display Fabric Material

Polyester
