Typ

Fan

Ljudnivå

30.2 dBA

Vikt

0.3 kg

Luftflöde

109.2 m3/h

Fläktstorlek

120 mm

Antal fläktar

3

Fläktmodell

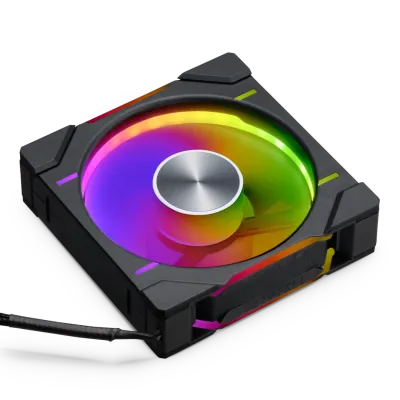

D30-120 | Black Regular Triple Pack

Fläkthastighet

250~2000 ± 10% RPM

Garanti

3 years

Dimensioner

120 × 120 × 30 mm

Lagertyp

FDB (Fluid Dynamic Bearing)

Statiskt tryck

3.01 mmH2O

Övriga specifikationer

General UPC Code

Regular | Reverse | 886523002925 | 886523002949 | 886523003038 | 886523003052

General Model No.

Regular | Reverse | PH-F120D30_DRGB_PWM_BK01 | PH-F120D30_DRGB_PWM_BK01_3P | PH-F120D30R_DRGB_PWM_BK01 | PH-F120D30R_DRGB_PWM_BK01_3P

Triple Pack Screws

12x Fan screw 12x UNC 6-32 radiator screw 36mm 12x M4 radiator screw 36mm 2x Corner clip cable 6x Corner clip 2x Bridge clip connector 2x Bridge clip 8x Screw cover corner (4L|4R) 4x Screw cover bridge

General PWM Connector

4-Pin Daisy-chain

Triple Pack Accessory

2x D-RGB mainboard adapter

General Blade Geometry

Seven blades design

General PWM Cable Length

700 mm | 27.56 in

Triple Pack Gross Weight

990 g | 34.92 oz

General D-RGB Cable Length

600 + 100 mm | 23.62 + 3.94 in

Technical Details Regular MTFB

50.000 hours

Technical Details Regular Max Power

≦ 1.8W

Technical Details Regular LED Number

30

Technical Details Regular Max Current

0.15A

Technical Details Regular Rated Voltage

5~13.2V

Technical Details Regular LED Rated Current

Max. 0.45A

Technical Details Regular Operating Voltage Range

DC 5 ~ 13.2V
