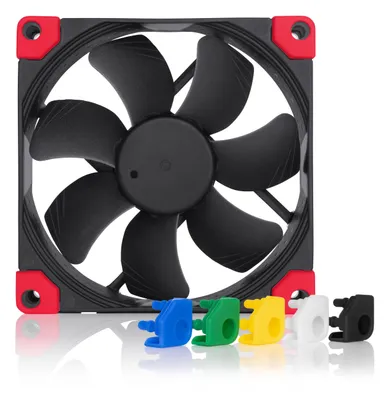

NF-A9 PWM chromax.black.swap

Typ

Fan

Ljudnivå

22.8 dBA

Vikt

100 kg

Luftflöde

78.9 m3/h

Fläktstorlek

92 mm

Antal fläktar

1

Fläkthastighet

0-2000 RPM

Material

Frame: PBT GF30PBT GF30, Impeller: PBT GF30PBT GF30, Pads: Silicone rubberSilicone rubber

Garanti

6 years6 years

Dimensioner

92 92 25 mm92 92 25 mm

Lagertyp

SSO2SSO2

Statiskt tryck

2.28 mmH2O

Övriga specifikationer

EAN

90100181004889010018100488

UPC

841501110481841501110481

MTTF

> 150,000 h> 150,000 h

Wire

26 AWG26 AWG

Pin 1

Black: Ground (GND)Black: Ground (GND)

Pin 2

Yellow: Voltage (Vcc)Yellow: Voltage (Vcc)

Pin 3

Green: RPM SignalGreen: RPM Signal

Pin 4

Blue: PWM SignalBlue: PWM Signal

Poles

44

Slots

44

Colour

BlackBlack

Connector

4-pin4-pin

Driver IC

NE-FD1NE-FD1

Frame shape

SquareSquare

Cable length

10 mm10 mm

Flammability

UL 94 V-0UL 94 V-0

Frame colour

BlackBlack

EMC standards

EN55032, EN55035EN55032, EN55035

Rated voltage

12 V12 V

Connector type

A2543-4PIN (or equal)A2543-4PIN (or equal)

Packaging unit

40 pcs40 pcs

Impeller colour

BlackBlack

Safety standards

EN62368-1EN62368-1

Starting voltage

7 V7 V

Storage humidity

15 – 90 %15 – 90 %

Input power (max)

1.2 W1.2 W

Ingress protection

IP50IP50

Operating humidity

15 – 90 %15 – 90 %

Size (Form factor)

92 x 92 x 25 mm92 x 92 x 25 mm

Dielectric strength

5 mA max. / measured between lead wire (+) and frame at 500 VAC/min5 mA max. / measured between lead wire (+) and frame at 500 VAC/min

Input current (max)

0.1 A0.1 A

Motor type (phases)

Single phaseSingle phase

Polarity protection

Open circuit when Vcc & GND are exchanged. Circuit won't be burned within 5 sec when Vcc & GND are exchanged.Open circuit when Vcc & GND are exchanged. Circuit won't be burned within 5 sec when Vcc & GND are exchanged.

Storage temperature

-20°C to +75°C-20°C to +75°C

Packaging dimensions

188 x 147 x 38 mm188 x 147 x 38 mm

Production standards

ISO 9001 & ISO 14001ISO 9001 & ISO 14001

Rotational direction

Counter-clockwiseCounter-clockwise

Input power (typical)

1.12 W1.12 W

Insulation resistance

10 MΩ / between unshielded wire and frame at 500 VDC/min10 MΩ / between unshielded wire and frame at 500 VDC/min

Operating temperature

-10°C to +70°C-10°C to +70°C

Packaging unit weight

10.34 kg10.34 kg

Max. operating voltage

13.2 V13.2 V

Input current (typical)

0.09 A0.09 A

Locked rotor protection

Auto power off after locked at rated voltage for 1 sec. After auto power off, the circuit attempts to restart in 2 to 6 sec.Auto power off after locked at rated voltage for 1 sec. After auto power off, the circuit attempts to restart in 2 to 6 sec.

Mounting hole spacing(s)

82.5 x 82.5 mm82.5 x 82.5 mm

Packaging unit dimensions

416 x 400 x 350 mm416 x 400 x 350 mm

Anti-vibration pads colour

Multi colourMulti colour

Rotational speed @ 20% PWM

500 rpm500 rpm

Dimensions with anti-vibration pads

93 x 93 x 27 mm93 x 93 x 27 mm

Packaging weight (including product)

218 g218 g

Cable length with extension cable (included)

310 mm310 mm
