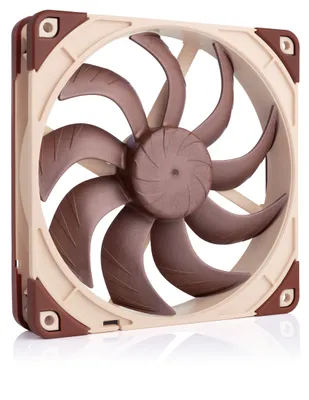

Typ

Fan

Ljudnivå

11.4 dBA

Vikt

225 kg

Luftflöde

81.6 m3/h

Fläktstorlek

140 mm

Antal fläktar

1

Fläkthastighet

0-800 RPM

Material

Frame: PBT ABS GF30PBT ABS GF30, Impeller: LCP GF30LCP GF30, Pads: Silicone rubberSilicone rubber

Garanti

6 years6 years

Dimensioner

140 × 140 × 25 mm140 × 140 × 25 mm

Lagertyp

SSO2SSO2

Statiskt tryck

0.71 mmH2O

Övriga specifikationer

EAN

90100181006249010018100624

UPC

841501110627841501110627

MTTF

> 150,000 h> 150,000 h

Wire

26 AWG26 AWG

Pin 1

Black: Ground (GND)Black: Ground (GND)

Pin 2

Yellow: Voltage (Vcc)Yellow: Voltage (Vcc)

Pin 3

Green: RPM SignalGreen: RPM Signal

Pin 4

Blue: PWM SignalBlue: PWM Signal

Poles

44

Slots

44

Colour

BrownBrown

Sleeving

Fibreglass silicone meshFibreglass silicone mesh

Connector

4-pin4-pin

Driver IC

NE-FD6NE-FD6

Frame shape

SquareSquare

Cable length

200 mm200 mm

Flammability

UL 94 V-0UL 94 V-0

Frame colour

BeigeBeige

EMC standards

EN55032, EN55035EN55032, EN55035

Rated voltage

12 V12 V

Connector type

A2543-4PIN (or equal)A2543-4PIN (or equal)

Packaging unit

40 pcs40 pcs

Impeller colour

BrownBrown

Safety standards

EN62368-1EN62368-1

Starting voltage

7 V7 V

Storage humidity

15 – 90 %15 – 90 %

Input power (max)

0.48 W0.48 W

Ingress protection

IP50IP50

Operating humidity

15 – 90 %15 – 90 %

Size (Form factor)

140 x 140 x 25 mm (square)140 x 140 x 25 mm (square)

Dielectric strength

5 mA max. / measured between lead wire (+) and frame at 500 VAC/min5 mA max. / measured between lead wire (+) and frame at 500 VAC/min

Input current (max)

0.04 A0.04 A

Motor type (phases)

Single phaseSingle phase

Polarity protection

Open circuit when Vcc & GND are exchanged. Circuit won't be burned within 5 sec when Vcc & GND are exchanged.Open circuit when Vcc & GND are exchanged. Circuit won't be burned within 5 sec when Vcc & GND are exchanged.

Storage temperature

-20°C to +75°C-20°C to +75°C

Packaging dimensions

33 x 199 x 148 mm33 x 199 x 148 mm

Production standards

ISO 9001 & ISO 14001ISO 9001 & ISO 14001

Rotational direction

Counter-clockwiseCounter-clockwise

Insulation resistance

10 MΩ / between unshielded wire and frame at 500 VDC/min10 MΩ / between unshielded wire and frame at 500 VDC/min

Operating temperature

-10°C to +60°C-10°C to +60°C

Packaging unit weight

15.4 kg15.4 kg

Max. operating voltage

13.2 V13.2 V

Airflow with LNA (max.)

67.5 m³/h (39.73 CFM)67.5 m³/h (39.73 CFM)

Locked rotor protection

Auto power off after locked at rated voltage for 1 sec. After auto power off, the circuit attempts to restart in 2 to 6 sec.Auto power off after locked at rated voltage for 1 sec. After auto power off, the circuit attempts to restart in 2 to 6 sec.

Mounting hole spacing(s)

124.5 x 124.5 mm124.5 x 124.5 mm

Packaging unit dimensions

342 x 425 x 373 mm342 x 425 x 373 mm

Anti-vibration pads colour

BrownBrown

Static pressure with LNA (max.)

0.43 mm H₂O0.43 mm H₂O

Acoustical noise with LNA (max.)

8.6 dB(A)8.6 dB(A)

Rotational speed with LNA (max.)

600 rpm600 rpm

Dimensions with anti-vibration pads

140 x 140 x 27 mm140 x 140 x 27 mm

Packaging weight (including product)

365 g365 g

Cable length with extension cable (included)

500 mm500 mm
