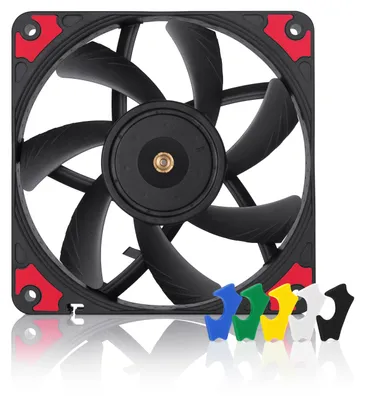

Typ

Fan

Ljudnivå

23.9 dBA

Vikt

130 kg

Luftflöde

94.2 m3/h

Fläktstorlek

120 mm

Antal fläktar

1

Fläkthastighet

0-1850 RPM

Material

Frame: PBT GF30PBT GF30, Impeller: PBT GF30PBT GF30, Pads: Silicone rubberSilicone rubber

Garanti

6 years6 years

Dimensioner

120 × 120 × 15 mm120 × 120 × 15 mm

Lagertyp

SSO2SSO2

Statiskt tryck

1.53 mmH2O

Övriga specifikationer

EAN

90100181004649010018100464

UPC

841501110467841501110467

MTTF

> 150,000 h> 150,000 h

Wire

28 AWG28 AWG

Pin 1

Black: Ground (GND)Black: Ground (GND)

Pin 2

Black: Voltage (Vcc)Black: Voltage (Vcc)

Pin 3

Black: RPM SignalBlack: RPM Signal

Pin 4

Black: PWM SignalBlack: PWM Signal

Poles

44

Slots

44

Colour

BlackBlack

Sleeving

Fibreglass silicone meshFibreglass silicone mesh

Connector

4-pin4-pin

Driver IC

NE-FD1NE-FD1

Frame shape

SquareSquare

Cable length

10 mm10 mm

Flammability

UL 94 V-0UL 94 V-0

Frame colour

BlackBlack

EMC standards

EN55032, EN55035EN55032, EN55035

Rated voltage

12 V12 V

Connector type

A2543-4PIN (or equal)A2543-4PIN (or equal)

Packaging unit

36 pcs36 pcs

Impeller colour

BlackBlack

Safety standards

EN62368-1EN62368-1

Starting voltage

7 V7 V

Storage humidity

15 – 90 %15 – 90 %

Input power (max)

1.56 W1.56 W

Ingress protection

IP50IP50

Operating humidity

15 – 90 %15 – 90 %

Size (Form factor)

120 x 120 x 15 mm120 x 120 x 15 mm

Dielectric strength

5 mA max. / measured between lead wire (+) and frame at 500 VAC/min5 mA max. / measured between lead wire (+) and frame at 500 VAC/min

Input current (max)

0.13 A0.13 A

Motor type (phases)

Single phaseSingle phase

Polarity protection

Open circuit when Vcc & GND are exchanged. Circuit won't be burned within 5 sec when Vcc & GND are exchanged.Open circuit when Vcc & GND are exchanged. Circuit won't be burned within 5 sec when Vcc & GND are exchanged.

Storage temperature

-20°C to +75°C-20°C to +75°C

Packaging dimensions

215 x 185 x 35 mm215 x 185 x 35 mm

Production standards

ISO 9001 & ISO 14001ISO 9001 & ISO 14001

Rotational direction

Counter-clockwiseCounter-clockwise

Input power (typical)

1.27 W1.27 W

Insulation resistance

10 MΩ / between unshielded wire and frame at 500 VDC/min10 MΩ / between unshielded wire and frame at 500 VDC/min

Operating temperature

-10°C to +70°C-10°C to +70°C

Packaging unit weight

11.32 kg11.32 kg

Max. operating voltage

13.2 V13.2 V

Input current (typical)

0.11 A0.11 A

Locked rotor protection

Auto power off after locked at rated voltage for 1 sec. After auto power off, the circuit attempts to restart in 2 to 6 sec.Auto power off after locked at rated voltage for 1 sec. After auto power off, the circuit attempts to restart in 2 to 6 sec.

Mounting hole spacing(s)

105 x 105 mm105 x 105 mm

Packaging unit dimensions

440 x 440 x 380 mm440 x 440 x 380 mm

Anti-vibration pads colour

Multi colourMulti colour

Rotational speed @ 20% PWM

450 rpm450 rpm

Dimensions with anti-vibration pads

120 x 120 x 16 mm120 x 120 x 16 mm

Packaging weight (including product)

280 g280 g
