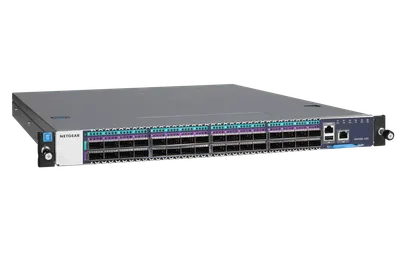

Fully Managed Switch M4500-32C (CSM4532)

Fläktlös

Nej

Portar

32

Övriga specifikationer

Weight

9.78 Kg (21.54lb)

Acoustics

64.0dB @ 25°C (77°F) - the noise is reduced when the two PSUs connect to a power source

Interfaces

32x SFP ports

Management

CLI only (local console, telnet port 1223 and SSH port 1234)

Form Factor

Full width 1U (508mm depth) with two mounting ears (front) and rail kits (back)

PSU and Fans

2 modular Power Supply Units and 6 modular Fan Trays come pre-installed

Wi-Fi Speeds

Fully Managed Switch M4500-32C (CSM4532)

25G SFP28 Ports

N/A

Ordering Number

CSM4532

Management Ports

1G Ethernet service port for out-of-band management (OOB, RJ45). RS232 straight-through serial RJ45 for local management console

100G QSFP28 Ports

32 QSFP28 ports (1x100G default mode, other modes can be 1x50G, 1x40G)
