Operating humidity 90% maximum relative humidity, non-condensing, / Storage humidity 95% maximum relative humidity, non-condensing
LAN/VLAN
Maximum Number of VLANs is 8 / DHCP Server (limit is 32) / 802.1Q VLAN
Security
Firewall Traffic Rules/Scheduling, Port Forwarding, Port Triggering, Stateful Packet Inspection (SPI), Port/Service Blocking, Denial-of-service (DoS) Prevention, Stealth Mode, Block TCP Flood, Block UDP Flood, Respond To Ping on Internet Port
Interfaces
1 x 10 Gbps/Multi-gigabit Copper (Configurable LAN/WAN) • 1 x 2.5G/1 Gbps RJ-45 (WAN) • 3 x 2.5G/1 Gbps RJ-45 (LAN) • 1 x 10G/1G SFP+ (LAN)
Networking
ISP Address Assignment DHCP, Static IP Assignment, PPPoE, NAT, Static Routing, Routing Protocol (RIPv1, RIPv2), MAC Address Cloning/spoofing, NTP Support, UPnP, Auto Uplink on Switch Ports
Performance
LAN-WAN Throughput: 2.4Gbps for 2.5G WAN port. 9.4Gbps for 10G WAN port / WAN-LAN Throughput: 10Gbps max WAN with 17.5Gbps max LAN, when using WAN2 port. 2.5Gbps max WAN with 27.5Gbps max LAN, when using WAN1 port only
Connectivity
1 x 10G/Multi-gigabit Copper (Configurable LAN/WAN) / 1 x 2.5G/1G RJ-45 (WAN) / 3 x 2.5G/1G RJ-45 (LAN) / 1 x 10G/1G SFP+ (LAN)
Key Exchange
IKEv1, IKEv2, Pre-shared Key
VoIP SIP ALG
Yes
Wi-Fi Speeds

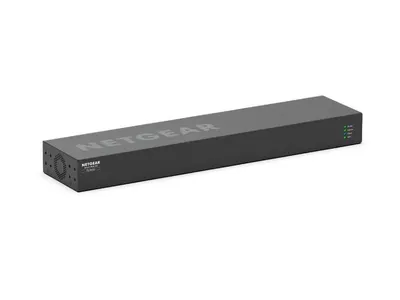

Dual WAN Business Router with 10G + 2.5G Ports – Pro Router PR60X
System Memory
2GB
Ethernet Ports
1 x 10 Gbps/Multi-gigabit Copper (Configurable LAN/WAN) / 1 x 2.5G/1 Gbps RJ-45 (WAN) / 3 x 2.5G/1 Gbps RJ-45 (LAN) / 1 x 10G/1G SFP+ (LAN)
On-board Storage
4GB
Wireless Standard
Dual WAN Business Router with 10G + 2.5G Ports – Pro Router PR60X
Management Options
Insight Remote Cloud Management / Web GUI
Storage Temperature
-20° to 70° C (-4° to 158° F)
Operating Temperature
0° to 40°C (32° to 104° F)
Max. Power Consumption
AC 100-240V, 50/60Hz, 1.3A / Electrical Specifications Power adapter input localized to regions
