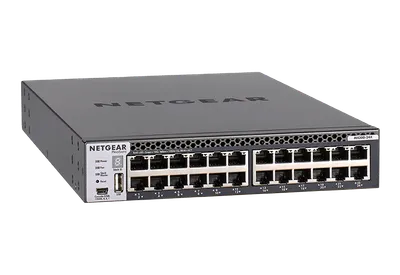

24x10G and 4xSFP+ (shared) Managed Switch (XSM4324CS)

Ethernet

10 Gbps

Portar

10

Övriga specifikationer

Ports

24 Ports Copper 100M / 1G / 10G. 4 Ports SFP+ 1G / 10G (shared) / 1 Modular Bay with One (1) 250W Modular PSU included APS250W / 480 Gps Switching Fabric / Fixed Fan Front-to-Back 37dB

VLANS

4k with 2K DHCP Server Leases, IPv4: 256 Pools / IPV6: 16 Pools / Mix-and-match Stackable Managed Switch Platform with nonstop forwarding and failover on all 1Gb to 10Gb models / Pre-configured for AV-over-IP L2 Multicast on all models 10G models (SDVoE Ready)

Console

RJ45 RS232 (Back). Mini-USB (Front)

Latency

<0.9µs 10G SFP+ / <1.25µs 10G RJ45

Storage

USB (Front) / Single-pane-of-glass NMS300 management platform with mass-configuration support / Dual firmware image and configuration file for updates with minimum service interruption

Support

ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts. / ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.

Warranty

This product is backed by a NETGEAR ProSAFE Limited Lifetime Hardware Warranty . / Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.

Interfaces

10G. 4 Ports SFP+ 1G

Table Sizes

128K MAC 8k ARP / NDP / Up to 960 Gbps / Throughput up to 714 Mpps

IP Multicast

1,024 IPv4 / 512 IPv6

Wi-Fi Speeds

24x10G and 4xSFP+ (shared) Managed Switch (XSM4324CS)

Ethernet Ports

24 Ports Copper 100M / 1G / 10G. 4 Ports SFP+ 1G / 10G (shared) / 1 Modular Bay with One (1) 250W Modular PSU included APS250W / 480 Gps Switching Fabric / Fixed Fan Front-to-Back 37dB

Wireless Standard

24x10G and 4xSFP+ (shared) Managed Switch (XSM4324CS)

Management Options

Ethernet: Out-of-band 1G port (Back)

M4300 Series features

License-free L2 and Layer 3, Layer 4 with Policy Based Routing, RIP, VRRP, OSPF and PIM

Hardware Specifications

Model Number: XSM4324CS

Multicast IGMP Membership

2k IPv4 / IPv6

Application Static Routing- 64v4 / 64v6 RIP

512 OSPF: 512
