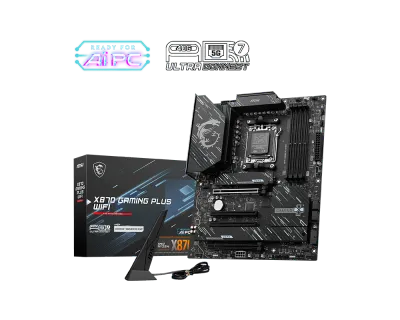

X870 GAMING PLUS WIFI

WiFi

WiFi 7

Sockel

AM5

Chipset

AMD X870

M.2-platser

3

Max minne

256 GB

PCIe-platser

4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor) * PCI_E4 slot will run at x2 speed when installing M.2 SSD in the M2_3 slot.

SATA-portar

4

Ljudkodek

Realtek ALC897

Dimensioner

244 305 mm

Övriga specifikationer

USB

4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) 1x USB 40Gbps Type C (Rear)

RAID

••Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices *SATA_A1~A4 do not support RAID function. *RAID 5 configuration is only supported by Ryzen 9000 series processors.

Internal IO

1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports

LED FEATURE

4x EZ Debug LED

BACK PANEL PORTS

Clear CMOS Button USB 5Gbps Type-A USB 10Gbps Type-A USB 2.0 5G LAN Wi-Fi / Bluetooth Audio connectors Flash BIOS Button HDMI USB 40Gbps Type-C USB 2.0 USB 20Gbps Type-C USB 5Gbps Type-A

OPERATING SYSTEM

Support for Windows 11 64-bit
