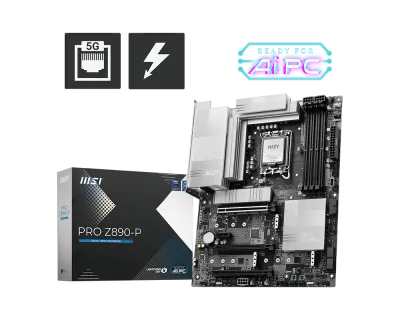

PRO Z890-P

Sockel

LGA 1851

Chipset

INTEL Z890

M.2-platser

4

Ethernet

5 Gigabit

Max minne

256 GB

PCIe-platser

3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)

SATA-portar

4

Ljudkodek

Realtek ALC897

Dimensioner

244 305 mm

Formfaktor

ATX

Minnestyp

DDR5

Minnesplatser

4

Displayutgångar

1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Thunderbolt 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Max minneshastighet

9200 MHz

Övriga specifikationer

USB

4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front)

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

Internal IO

1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 5x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports

LED FEATURE

4x EZ Debug LED

BACK PANEL PORTS

DisplayPort Mouse / Keyboard USB 2.0 5G LAN Audio Connectors Flash BIOS Button Thunderbolt 4 40Gbps (Type-C) HDMI USB 2.0 USB 5Gbps Type-A USB 10Gbps Type-C USB 10Gbps Type-A

OPERATING SYSTEM

Support for Windows 11 64-bit

Onboard Thunderbolt

1x Thunderbolt4 ports (Rear) Supports up to 40Gbps transfer rate with Thunderbolt devices Supports up to 20Gbps transfer rate with USB4 devices Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display
