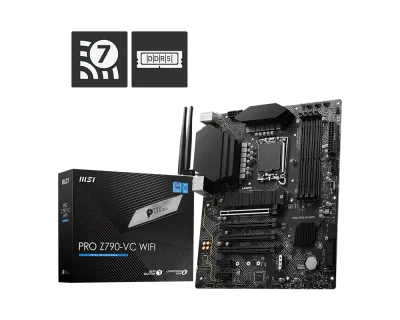

PRO Z790-VC WIFI

WiFi

WiFi 7

Sockel

LGA 1700

Chipset

INTEL Z790

M.2-platser

2

Ethernet

2.5 Gigabit

Max minne

256 GB

PCIe-platser

4x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x4 (From Chipset) PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E6 Gen PCIe 3.0 supports up to x1 (From Chipset)

SATA-portar

4

Ljudkodek

Realtek ALC897

Dimensioner

244 305 mm

Formfaktor

ATX

Minnestyp

DDR5

Minnesplatser

4

Displayutgångar

1x HDMI Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Övriga specifikationer

USB

2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) 1x USB 20Gbps Type C (Rear)

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

Internal IO

1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x Addressable RGB LED connector(JRAINBOW) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports

LED FEATURE

4x EZ Debug LED

BACK PANEL PORTS

Keyboard / Mouse DisplayPort 2.5G LAN Wi-Fi / Bluetooth Audio Connectors USB 2.0 HDMI USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2x2 20Gbps (Type-C)

OPERATING SYSTEM

Support for Windows 11 64-bit, Windows 10 64-bit
