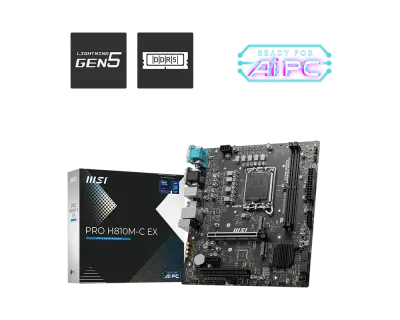

PRO H810M-C EX

Sockel

LGA 1851

Chipset

INTEL H810

M.2-platser

2

Ethernet

1 Gigabit

Max minne

128 GB

PCIe-platser

1x PCI-E x16 slot 1x PCI-E x1 slot 1x PCI slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)

SATA-portar

4

Ljudkodek

Realtek ALC897

Dimensioner

220 244 mm

Formfaktor

Micro ATX

Minnestyp

DDR5

Minnesplatser

2

Displayutgångar

1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Supports DisplayPort 1.4 over USB Type-C, maximum resolution of 4K 60Hz* 1x DVI Support DVI-D, maximum resolution of 1920x1200 60Hz* 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. **This motherboard limits the onboard graphics to support only four displays. If you utilize all five onboard graphics ports, the DVI-D port will be disabled.

Max minneshastighet

6400 MHz

Övriga specifikationer

USB

2x USB 2.0 (Rear) 4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 10Gbps Type C (Rear)

Internal IO

1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports

LED FEATURE

4x EZ Debug LED 1x EZ Memory Detection LED

BACK PANEL PORTS

COM Port VGA Keyboard / Mouse USB 5Gbps Type-A 1G LAN Audio Connectors DisplayPort HDMI DVI-D USB 2.0 USB 5Gbps Type-A USB 10Gbps Type-C (Type-C Display port)

OPERATING SYSTEM

Support for Windows 11 64-bit
