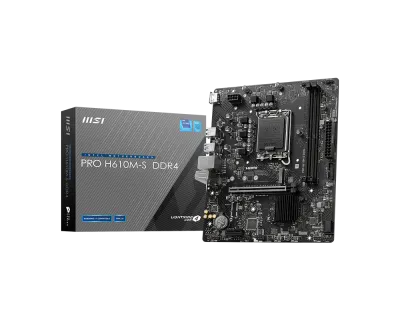

PRO H610M-S DDR4

Sockel

LGA 1700

Chipset

INTEL H610

M.2-platser

1

Max minne

64 GB

PCIe-platser

1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

SATA-portar

2

Ljudkodek

Realtek ALC897

Dimensioner

200 236 mm

Formfaktor

Micro ATX

Minnestyp

DDR4

Minnesplatser

2

Displayutgångar

1x HDMI Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Max minneshastighet

1866 MHz

Övriga specifikationer

USB

4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front)

Jumpers

1x Clear CMOS jumper

Processor

Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors 1; Processor socket LGA1700; Please go to www.msi.com to get the newest support status as new processors are released.

Dimensions

M-ATX Form Factor; 9.3 in. x 7.9 in. (23.6 cm x 20 cm)

SATA Ports

4x SATA 6Gb/s ports (From H610 chipset)

Box content

MSI does not guarantee the risks or damages caused by changing the cover.; These pictures are for reference only and may vary without notice.

Internal IO

1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports

LED FEATURE

4x EZ Debug LED

LED Features

1x 4-pin RGB LED connector; 4x EZ Debug LED

M.2 SSD Slot
