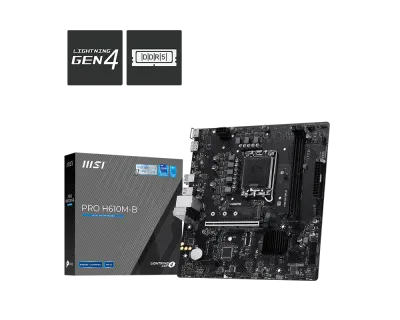

PRO H610M-B

Sockel

LGA 1700

Chipset

INTEL H610

M.2-platser

1

Max minne

128 GB

PCIe-platser

1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

SATA-portar

4

Ljudkodek

Realtek ALC897

Dimensioner

225 244 mm

Formfaktor

Micro ATX

Minnestyp

DDR5

Minnesplatser

2

Displayutgångar

1x HDMI Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4 with HBR2, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Övriga specifikationer

USB

4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front)

Internal IO

1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports

LED FEATURE

4x EZ Debug LED

BACK PANEL PORTS

HDMI DisplayPort USB 5Gbps Type-A LAN port Audio Connectors USB 2.0

OPERATING SYSTEM

Support for Windows 11 64-bit, Windows 10 64-bit
