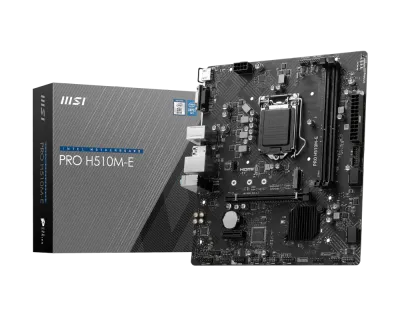

PRO H510M-E

Sockel

LGA 1200

Chipset

INTEL H470

M.2-platser

1

Max minne

64 GB

PCIe-platser

1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 PCIe 3.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)

SATA-portar

4

Ljudkodek

Realtek ALC897

Dimensioner

202 236 mm

Minnestyp

DDR4

Minnesplatser

2

Displayutgångar

1x HDMI 1x VGA Support HDMI 1.4, maximum resolution of 4K 30Hz* Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Övriga specifikationer

USB

4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front)

Internal IO

1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0)

LED FEATURE

4x EZ Debug LED

BACK PANEL PORTS

HDMI VGA Keyboard / Mouse USB 3.2 Gen 1 5Gbps (Type-A) LAN port Audio Connectors USB 2.0 USB 2.0

OPERATING SYSTEM

Support for Windows 11 64-bit, Windows 10 64-bit
