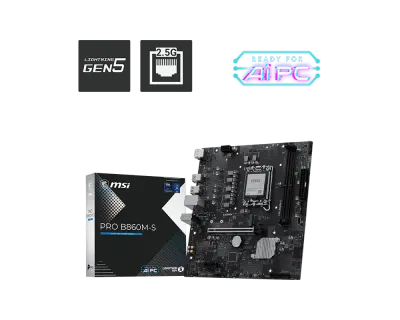

PRO B860M-S

Sockel

LGA 1851

Chipset

INTEL B860

M.2-platser

1

Ethernet

2.5 Gigabit

Max minne

128 GB

PCIe-platser

1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)

SATA-portar

4

Ljudkodek

Realtek ALC897

Dimensioner

220 244 mm

Formfaktor

Micro ATX

Minnestyp

DDR5

Minnesplatser

2

Displayutgångar

1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Max minneshastighet

8800 MHz

Övriga specifikationer

USB

4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front)

Internal IO

1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports

LED FEATURE

4x EZ Debug LED 1x EZ Memory Detection LED

BACK PANEL PORTS

DisplayPort USB 5Gbps Type-A USB 2.0 2.5G LAN Audio Connectors HDMITM USB 2.0

OPERATING SYSTEM

Support for Windows 11 64-bit
