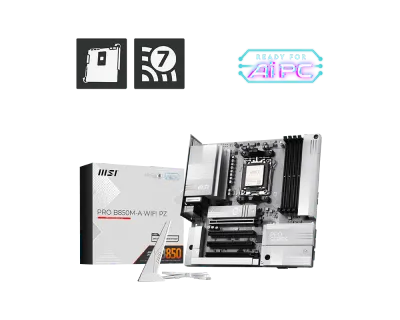

PRO B850M-A WIFI PZ

WiFi

WiFi 7

Sockel

AM5

Chipset

AMD B850

M.2-platser

2

Max minne

256 GB

PCIe-platser

4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)

SATA-portar

4

Ljudkodek

Realtek ALC897

Dimensioner

244 244 mm

Övriga specifikationer

USB

4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front)

RAID

Supports RAID 0 and RAID 1 for M.2 NVMe storage devices Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices

Internal IO

1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports

LED FEATURE

4x EZ Debug LED 1x EZ Memory Detection LED

BACK PANEL PORTS

Clear CMOS Button DisplayPort USB 10Gbps Type-A USB 10Gbps Type-A USB 5Gbps Type-A 5G LAN Wi-Fi / Bluetooth Audio connectors Flash BIOS Button HDMI USB 10Gbps Type-C USB 5Gbps Type-A

OPERATING SYSTEM

Support for Windows 11 64-bit
