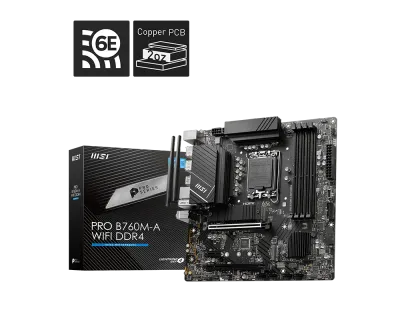

PRO B760M-A WIFI DDR4

WiFi

WiFi 6

Sockel

LGA 1700

Chipset

INTEL B760

M.2-platser

2

Max minne

128 GB

PCIe-platser

2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

SATA-portar

4

Ljudkodek

Realtek ALC897

Dimensioner

244 244 mm

Formfaktor

Micro ATX

Minnestyp

DDR4

Minnesplatser

4

Displayutgångar

2x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz* 2x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Övriga specifikationer

USB

2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) 2x USB 10Gbps Type A (Rear)

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Internal IO

1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports

LED FEATURE

4x EZ Debug LED

BACK PANEL PORTS

Keyboard / Mouse DisplayPort USB 3.2 Gen 1 5Gbps (Type-A) 2.5G LAN Wi-Fi / Bluetooth Audio Connectors USB 2.0 HDMI USB 3.2 Gen 2 10Gbps (Type-A)

OPERATING SYSTEM

Support for Windows 11 64-bit, Windows 10 64-bit
