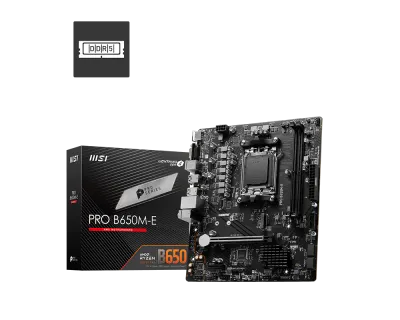

PRO B650M-E

Sockel

AM5

Chipset

AMD B650

M.2-platser

1

Max minne

128 GB

PCIe-platser

1x PCI-E x16 slot • Supports x16 (For Ryzen 9000/ 7000 Series processors) • Supports x8 (For Ryzen 8700/ 8600/ 8400 Series processors) • Supports x4 (For Ryzen 8500/ 8300 Series processors) 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

SATA-portar

4

Ljudkodek

Realtek ALC897

Dimensioner

211 244 mm

Formfaktor

Micro ATX

Minnestyp

DDR5

Minnesplatser

2

Displayutgångar

1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz* 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Övriga specifikationer

USB

2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front)

RAID

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

Internal IO

1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports

LED FEATURE

4x EZ Debug LED

BACK PANEL PORTS

HDMI VGA Keyboard/Mouse USB 3.2 Gen 1 5Gbps (Type-A) LAN port Audio connectors USB 2.0

OPERATING SYSTEM

Support for Windows 11 64-bit, Windows 10 64-bit
