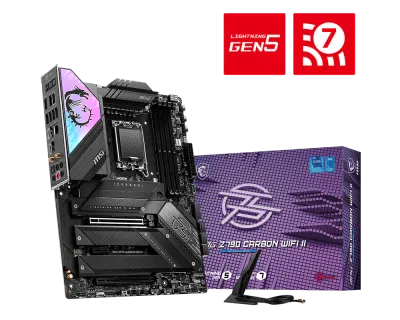

MPG Z790 CARBON WIFI II

WiFi

WiFi 7

Sockel

LGA 1700

Chipset

INTEL Z790

M.2-platser

5

Ethernet

2.5 Gigabit

Max minne

256 GB

PCIe-platser

2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

SATA-portar

6

Ljudkodek

Realtek ALC4080

Dimensioner

244 305 mm

Formfaktor

ATX

Minnestyp

DDR5

Minnesplatser

4

Displayutgångar

1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Övriga specifikationer

USB

4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 6x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Rear) 1x USB 20Gbps Type C (Front)

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices * SATA_A1~A2 do not support RAID function.

Internal IO

1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 1x USB4 card connector (JTBT_U4_1, supports RTD3) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports

LED FEATURE

4x EZ Debug LED 1x 2-Digit Debug Code LED 1x EZ LED Control switch

BACK PANEL PORTS

Flash BIOS / Clear CMOS USB 5 Gbps (Type-A) USB 10Gbps (Type-A) 2.5G LAN Wi-Fi / Bluetooth Audio Connectors Smart Button HDMI USB 10Gbps (Type-C) USB 20Gbps (Type-C) Optical S/PDIF Out

OPERATING SYSTEM

Support for Windows 11 64-bit, Windows 10 64-bit
