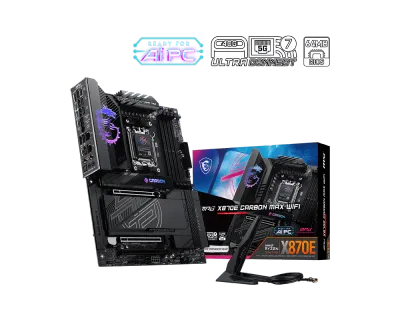

MPG X870E CARBON MAX WIFI

WiFi

WiFi 7

Sockel

AM5

Chipset

AMD X870E

M.2-platser

4

Ethernet

5 Gigabit

Max minne

256 GB

PCIe-platser

3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 PCI_E1 & PCI_E2 slots • Supports PCIe 5.0 x16/x0 or x8/x8 (For Ryzen 9000/ 7000 Series processors) • Supports PCIe 4.0 x8/x0 (For Ryzen 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4/x0 (For Ryzen 8500/ 8300 Series processor) PCI_E3 slot • Supports up to PCIe 4.0 x4

SATA-portar

4

Ljudkodek

Realtek ALC4080

Dimensioner

244 305 mm

Formfaktor

ATX

Minnestyp

DDR5

Minnesplatser

4

Displayutgångar

1x HDMI Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz* 2x Type-C DisplayPort USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Max minneshastighet

9000 MHz

Övriga specifikationer

USB

4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 9x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear)

RAID

•Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices •Supports RAID 0, RAID 1, RAID 5* and RAID 10** for M.2 NVMe storage devices *RAID 5 configuration is only supported by Ryzen 9000 series processors. ** RAID 10 configuration is only supported by Ryzen 9000/7000 series processors.

Mounting

9 mounting holes

Multi-GPU

Supports AMD CrossFire Technology

Processor

Supports 12th Gen Intel Core, Pentium Gold and Celeron Processors 1; Processor socket LGA1700; Please go to intel.com for compatibility information.

Dimensions

ATX Form Factor; 12 in. x 9.6 in. (30.5 cm x 24.4 cm)

Box content

MSI does not guarantee the risks or damages caused by changing the cover.; These pictures are for reference only and may vary without notice.

Internal IO

1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 5x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Thermal Sensor connectors(T_SEN) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
