MSI

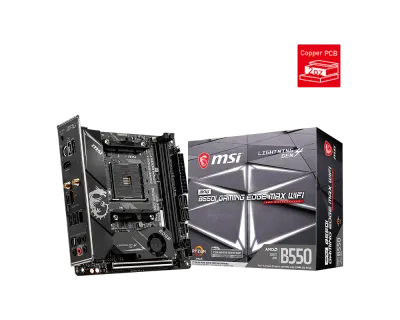

MPG B550I GAMING EDGE MAX WIFI

Name: MPG B550I GAMING EDGE MAX WIFI
Brand: MSI

Art.nr: MPG-B550I-GAMING-EDGE-MAX-WIFI · EAN: 4719072769215

Specifikationer

Produktsida

Chipset: AMD B550 Chipset
M.2-platser: 2
Ethernet: 2.5 Gigabit
SATA-portar: 4
Minnestyp: DDR4
Minnesplatser: 2
Displayutgångar: 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz1; Maximum shared memory of 2048 MB; Available for the processor with integrated graphics.
Max minneshastighet: 1866 MHz

Övriga specifikationer

USB: 3x USB 3.2 Gen 1 5Gbps ports [1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector]; 4x USB 2.0 ports [2 Type-A ports on the back panel, 2 ports through the internal USB 2.0 connector]; 2x USB 3.2 Gen 2 10Gbps ports [1 Type-C port and 1 Type-A port] on the back panel; 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
HDMI: 1
RAID: Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices; Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Socket: AM4
DirectX: 12
SATAIII: 4
M.2 Slot: 2
PCI-E x16: 1
DIMM Slots: 2
Dimensions: Mini-ITX Form Factor; 6.7 in. x 6.7 in. (17.0 cm x 17.0 cm)
Box content: MSI does not guarantee the risks or damages caused by changing the cover.; These pictures are for reference only and may vary without notice.

Priser hos återförsäljare

Butik	Logotyp	Pris	Lager
Inga aktuella priser tillgängliga.

Recensioner

Laddar recensioner…

CPU Support

Support for Windows 10 64-bit

Form Factor

Mini-ITX

I/O Controller

NUVOTON NCT6687-R Controller Chip

Expansion Slots

1x PCIe 4.0 / 3.0 x16 slot 1; The supported specification depends on installed processor.

Back panel ports

USB 2.0; WiFi / Bluetooth; USB 3.2 Gen 2 10Gbps(Type-A); 2.5G LAN; HD Audio Connectors; Flash BIOS Button; PS/2 Combo Port; HDMI 2.1; USB 3.2 Gen 2 10Gbps(Type-C); Clear CMOS; USB 3.2 Gen 1 5Gbops(Type-A); Optical S/PDIF OUT

WiFi & Bluetooth

Bluetooth 5.2

Audio ports (Rear)

5+ Optical S/PDIF (Realtek ALC1200 Codec)

Internal connectors

1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 4x SATA 6Gb/s connectors; 2x M.2 slots [M-Key]; 1x USB 3.2 Gen 1 5Gbps Type-C port; 1x USB 3.2 Gen 1 5Gbps connector [supports additional 2 USB 3.2 Gen 1 5Gbps ports]; 1x USB 2.0 connector [supports additional 2 USB 2.0 ports]; 1x 4-pin CPU fan connector; 1x 4-pin water-pump fan connector; 1x 4-pin system fan connector; 1x Front panel audio connector; 2x System panel connectors; 1x 3-pin RAINBOW LED connector; 1x Clear CMOS jumper; 4x EZ Debug LED

USB 2.0 ports (Rear)

USB 3.2 ports (Rear)

1(Gen 2, Type C), 1(Gen 2, Type A), 2(Gen 1, Type A)

USB 2.0 ports (Front)

USB 3.2 ports (Front)

1(Gen 1, Type C), 2(Gen 1, Type A)
