MSI

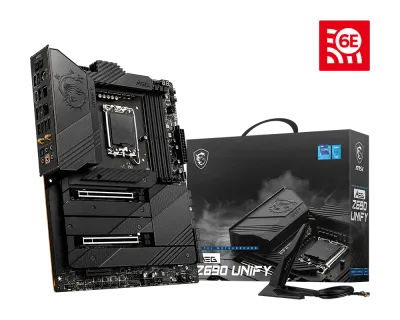

MEG Z690 UNIFY

Name: MEG Z690 UNIFY
Brand: MSI

Art.nr: MEG-Z690-UNIFY

Specifikationer

Produktsida

WiFi: WiFi 6
Chipset: Intel Z690 Chipset
M.2-platser: 5
Ethernet: 2.5 Gigabit
SATA-portar: 6
Minnestyp: DDR5
Minnesplatser: 4

Övriga specifikationer

SLI: Y
USB: Intel Z690 Chipset 2x USB 3.2 Gen2x2 20Gbps ports ( 1 Type-C port on the back panel, 1 Type-C internal connector) 3x USB 3.2 Gen2 10Gbps Type-A ports on the back panel 2x USB 2.0 Type-A port on the back panel; 2x USB 3.2 Gen2x2 20Gbps ports ( 1 Type-C port on the back panel, 1 Type-C internal connector); 3x USB 3.2 Gen2 10Gbps Type-A ports on the back panel; 2x USB 2.0 Type-A port on the back panel; Hub GL3590 4x USB 3.2 Gen2 10Gbps ports on the back panel; 4x USB 3.2 Gen2 10Gbps ports on the back panel; Hub ASM1074 4x USB 3.2 Gen1 5Gbps ports available through internal USB connectors; 4x USB 3.2 Gen1 5Gbps ports available through internal USB connectors; Hub GL850G 4x USB 2.0 ports available through internal USB connectors; 4x USB 2.0 ports available through internal USB connectors
RAID: 0/1/5/10
Socket: 1700
DirectX: 12
SATAIII: 6
M.2 Slot: 5
PCI-E x4: 1
CrossFire: Y
Dimension: 12 in. x 9.6 in. (30.5 cm x 24.4 cm)

Priser hos återförsäljare

Butik	Logotyp	Pris	Lager
Inga aktuella priser tillgängliga.

Recensioner

Laddar recensioner…

Multi-GPU

Supports AMD CrossFire Technology; Supports NVIDIA SLI Technology

Processor

Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors 1; Processor socket LGA1700; Please go to www.msi.com to get the newest support status as new processors are released.

Dimensions

12 in. x 9.6 in. (30.5 cm x 24.4 cm); ATX Form Factor

Box content

MSI does not guarantee the risks or damages caused by changing the cover.; These pictures are for reference only and may vary without notice.

CPU Support

Support for Windows 11 64-bit, Windows 10 64-bit

DDR5 Memory

6666+(OC) , 6600(OC) , 6400(OC) , 6200(OC) , 6000(OC) , 5800(OC) , 5600(JEDEC) , 5400(JEDEC) , 5200(JEDEC) , 5000(JEDEC) , 4800(JEDEC) MHz

LED Features

1x 2-Digit Debug Code LED; 4x EZ Debug LED; 1x 4-pin RGB LED connector; 2x 3-pin RAINBOW LED connectors; 1x 3-pin JCORSAIR LED connector

Expansion Slots

2x PCIe x16 slots (From CPU) Support PCIe 5.0 Support x16/ x0, x8/ x8; Support PCIe 5.0; Support x16/ x0, x8/ x8; 1x PCIe x4 slot (From Z690 Chipset) Supports PCIe 3.0 x4; Supports PCIe 3.0 x4

Back panel ports

Clear CMOS Button; PS/2 Keyboard / Mouse Port; 2.5G LAN; 2.5G LAN; USB 3.2 Gen 2 10Gbps (Type-A); Wi-Fi / Bluetooth; HD Audio Connectors; Flash BIOS Button; USB 2.0; USB 3.2 Gen 2x2 20Gbps (Type-C); USB 3.2 Gen 2 10Gbps (Type-A); Optical S/PDIF-Out

WiFi & Bluetooth

Intel Wi-Fi 6E module

Audio ports (Rear)

7.1-Channel High Definition Audio+ Optical S/PDIF (Realtek ALC4080 Codec)

Internal connectors

1x 24-pin ATX main power connector; 2x 8-pin ATX 12V power connectors; 6x SATA 6Gb/s connectors; 5x M.2 slots (M-Key); 1x USB 3.2 Gen 2x2 20Gbps Type-C port; 2x USB 3.2 Gen 1 5Gbps connector (supports additional 4 USB 3.2 Gen 1 5Gbps ports); 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports); 1x 4-pin CPU fan connector; 1x 4-pin water-pump fan connector; 6x 4-pin system fan connectors; 1x Front panel audio connector; 2x System panel connectors; 1x Chassis Intrusion connector; 2x 2-pin Thermal Sensors connector; 1x Water flow connector; 1x V-check point; 1x TPM module connector; 1x Tuning controller connector; 1x Debug port connector; 1x TBT connector (Supports RTD3)

USB 2.0 ports (Rear)

USB 3.2 ports (Rear)

1(Gen2x2, Type C), 7(Gen2, Type A)

USB 2.0 ports (Front)

USB 3.2 ports (Front)

1(Gen2x2, Type C), 4(Gen1, Type A)
