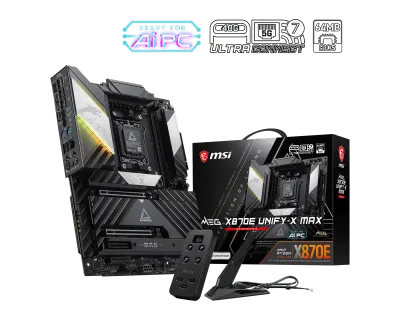

MEG X870E UNIFY-X MAX

WiFi

WiFi 7

Sockel

AM5

Chipset

AMD X870E

M.2-platser

5

Ethernet

5 Gigabit

Max minne

128 GB

PCIe-platser

2x PCI-E x16 slot 2x PCI-E x4 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x4 (From Chipset) PCI_E1 & PCI_E2 slots • Supports up to PCIe 5.0 x16/ x0 or x8/ x8 (For Ryzen 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x8/ x0 (For Ryzen 8700/ 8600/ 8400 Series processors) • Supports up to PCIe 4.0 x4/ x0 (For Ryzen 8500/ 8300 Series processors) * PCI_E3 & M.2_5 share the bandwidth. PCI_E3 will be disabled when installing device in the M.2_5 slot. You can enable PCI_E3 slot in the BIOS, but this will disable the M.2_5 slot. ** Please refer to the PCIe configuration table in the manual for more details.

SATA-portar

2

Ljudkodek

Realtek ALC4080

Dimensioner

244 305 mm

Formfaktor

ATX

Minnestyp

DDR5

Minnesplatser

2

Displayutgångar

1x HDMI Support HDMI 2.1 FRL, maximum resolution of 8K 60Hz* 2x Type-C DisplayPort USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@120Hz* * Available only on processors featuring integrated graphics. ** Graphics specifications may vary depending on the CPU installed.

Max minneshastighet

10600 MHz

Övriga specifikationer

USB

4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 8x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear) * To achieve USB PD 60W fast charging, the PD_PWR1 connector needs to be connected to the power supply unit. ** USB 40Gbps Type-C ports on the back panel only run PCIe 4.0 x2 when install Ryzen 8500/ 8300 Series processors. *** USB 40Gbps Type-C ports & M2_2 share the bandwidth. USB 40Gbps Type-C ports will run at x2 speed when installing device in the M2_2 slot. You can switch M.2_2 to x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports.

RAID

Supports RAID 0 and RAID 1 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices *RAID 5/ 10 configuration is only supported by Ryzen 9000/ 7000 series processors.

Internal IO

1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x Power Good connector (JM_PSU1) 1x CPU Fan 2x Combo Fan (Pump_Sys Fan) 5x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) V-check point 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports

LED FEATURE

1x EZ Digi-Debug LED 4x EZ Debug LED 1x EZ Memory Detection LED 1x EZ LED Control switch

BACK PANEL PORTS

USB 10Gbps (Type-A) Flash BIOS Button Clear CMOS Button Smart Button Keyboard / Mouse 5G LAN Wi-Fi / Bluetooth HD Audio Connectors HDMI 2.1 Port USB 40Gbps (Type-C) USB 10Gbps (Type-C) USB 10Gbps (Type-A) Optical S/PDIF-Out
