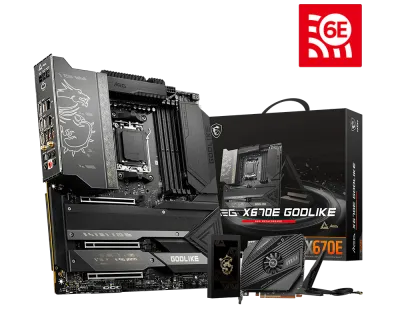

MEG X670E GODLIKE

WiFi

WiFi 6

Sockel

AM5

Chipset

AMD X670

M.2-platser

4

Ethernet

10 Gigabit

Max minne

256 GB

PCIe-platser

3x PCI-E x16 slot • Supports x16/x0/x4 or x8/x8/x4 (For Ryzen 9000/ 7000 Series processors) • Supports x8/x0/x4 (For Ryzen 8700/ 8600/ 8400 Series processors) • Supports x4/x0/x2 (For Ryzen 8500/ 8300 Series processors) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 5.0 supports up to x4 (From CPU) * This rear USB 3.2 Gen 2x2 20Gbps Type-C port and PCI_E3 slot share the same bandwidth. When installing a device in the PCI_E3 slot, the port would be unavailable by default. You can go to BIOS > Setting > Advanced > PCIe/PCI Subsystem Setting > PCI_E3/Rear USB-C 20 Switch to select the available device.

SATA-portar

8

Ljudkodek

Realtek ALC4082

Dimensioner

288 305 mm

Formfaktor

EATX

Minnestyp

DDR5

Minnesplatser

4

Övriga specifikationer

USB

4x USB 2.0 (Front) 4x USB 2.0 ports (Front) 4x USB 5Gbps Type A (Front) 7x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 2x USB 20Gbps Type C (Rear) 1x USB 20Gbps Type C (Front)

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices *SATA_A1_A2, SATA_B1_B2 and SATA_B3_B4 do not support RAID function. **RAID 5 configuration is only supported by Ryzen 9000 series processors. ***RAID 10 for M.2 NVMe storage devices is only supported by Ryzen 9000/7000 series processors.

Multi-GPU

AMD MULTI-GPU Support

Internal IO

1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 4pin or 6 pin) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) V-check point 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports 1x USB 20Gbps Type C ports

LED FEATURE

1x EZ LED Control switch 4x EZ Debug LED 1x 2-Digit Debug Code LED

BACK PANEL PORTS

Clear CMOS Button Flash BIOS Button 2.5G LAN 10G Super LAN USB 3.2 Gen 2 10Gbps (Type-A) Wi-Fi / Bluetooth HD Audio Connectors Smart Button USB 3.2 Gen 2x2 20Gbps (Type-C) USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2x2 20Gbps (Type-C) Optical S/PDIF-Out

OPERATING SYSTEM

Support for Windows 11 64-bit, Windows 10 64-bit
