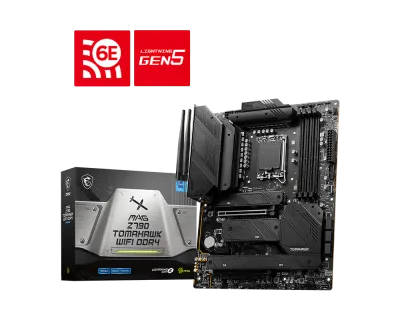

MAG Z790 TOMAHAWK WIFI DDR4

WiFi

WiFi 6

Chipset

INTEL Z790

M.2-platser

4

Ethernet

2.5 Gigabit

Max minne

256 GB

PCIe-platser

2x PCI-E x16 slot Supports x16/x4 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

SATA-portar

7

Ljudkodek

Realtek ALC4080

Dimensioner

244 305 mm

Formfaktor

ATX

Minnestyp

DDR4

Minnesplatser

4

Displayutgångar

1x HDMI Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 8K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Övriga specifikationer

USB

4x USB 2.0 (Front) 4x USB 2.0 ports (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 4x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear)

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices* Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices * SATA_A1_A2 do not support RAID function.

Internal IO

1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports

LED FEATURE

4x EZ Debug LED

BACK PANEL PORTS

DisplayPort 1.4 USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 2 10Gbps Type-A 2.5G LAN Port, HD Audio Connectors HDMI 2.1 Port Clear CMOS Button Flash BIOS Button USB 3.2 Gen 2 10Gbps Type-C USB 3.2 Gen 2x2 20Gbps Type-C Wi-Fi / Bluetooth Antenna Optical S/PDIF OUT

OPERATING SYSTEM

Support for Windows 11 64-bit, Windows 10 64-bit
