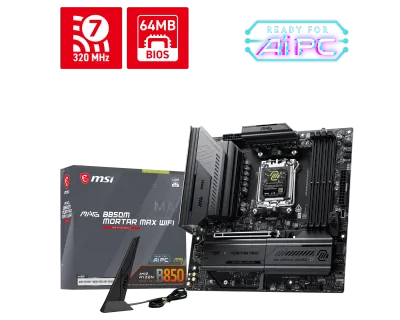

MAG B850M MORTAR MAX WIFI

WiFi

WiFi 7

Sockel

AM5

Chipset

AMD B850

M.2-platser

4

Max minne

256 GB

PCIe-platser

1x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) • Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)

Ljudkodek

Realtek ALC4080

Dimensioner

244 244 mm

Formfaktor

Micro ATX

Minnestyp

DDR5

Minnesplatser

4

Displayutgångar

1x HDMI Support HDMITM 2.1 with FRL port, supporting a maximum resolution of 8K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Max minneshastighet

8400 MHz

Övriga specifikationer

USB

4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 4x USB 10Gbps Type A (Rear) 3x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front)

RAID

• Supports RAID 0 and RAID 1 for SATA storage devices • Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* *RAID 5 and RAID 10 configurations are only supported by Ryzen 9000/ 7000 series processors.

Internal IO

1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x TPM pin header(Support TPM 2.0) 2x Direct OC Jumper (JBCLK) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports

LED FEATURE

4x EZ Debug LED 1x EZ Memory Detection LED

BACK PANEL PORTS

Clear CMOS Button USB 10Gbps Type-A USB 10Gbps Type-A USB 5Gbps Type-A 5G LAN Wi-Fi / Bluetooth Audio Connectors Flash BIOS Button HDMI USB 10Gbps Type-C USB 10Gbps Type-C USB 10Gbps Type-C USB 10Gbps Type-A Optical S/PDIF Out

OPERATING SYSTEM

Support for Windows 11 64-bit
