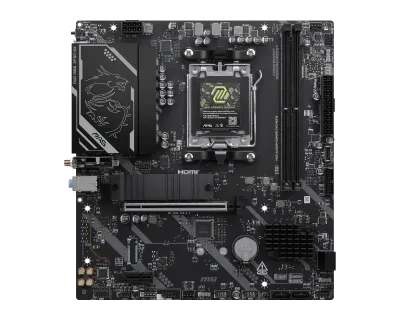

MAG A620AM GAMING EVO WIFI5

WiFi

WiFi 5

Sockel

AM5

Chipset

AMD A620A

M.2-platser

1

Max minne

128 GB

PCIe-platser

1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

SATA-portar

4

Ljudkodek

Realtek ALC897

Dimensioner

226 244 mm

Formfaktor

Micro ATX

Minnestyp

DDR5

Minnesplatser

2

Displayutgångar

1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Max minneshastighet

7200 MHz

Övriga specifikationer

USB

2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front)

RAID

Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices

Internal IO

1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports

LED FEATURE

4x EZ Debug LED

BACK PANEL PORTS

Clear CMOS Button DisplayPort USB 5Gbps Type-A 2.5G LAN Wi-Fi / Bluetooth Audio connectors Flash BIOS Button HDMI USB 5Gbps Type-A USB 2.0

OPERATING SYSTEM

Support for Windows 11 64-bit, Windows 10 64-bit
