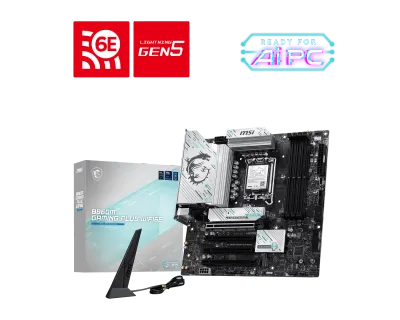

B860M GAMING PLUS WIFI6E

WiFi

WiFi 6

Sockel

LGA 1851

Chipset

INTEL B860

M.2-platser

3

Ethernet

5 Gigabit

Max minne

256 GB

PCIe-platser

4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)

SATA-portar

4

Ljudkodek

Realtek ALC897

Dimensioner

244 244 mm

Formfaktor

Micro ATX

Minnestyp

DDR5

Minnesplatser

4

Displayutgångar

1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Max minneshastighet

8800 MHz

Övriga specifikationer

USB

2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 1x USB 5Gbps Type C (Rear) 4x USB 5Gbps Type A (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front)

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Internal IO

1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports

LED FEATURE

4x EZ Debug LED

BACK PANEL PORTS

Display Port USB 2.0 USB 5Gbps (Type-A) 5G LAN Wi-Fi / Bluetooth HDMI Clear CMOS Button USB 5Gbps (Type-C) USB 10Gbps (Type-A) Audio Connectors

OPERATING SYSTEM

Support for Windows 11 64-bit
