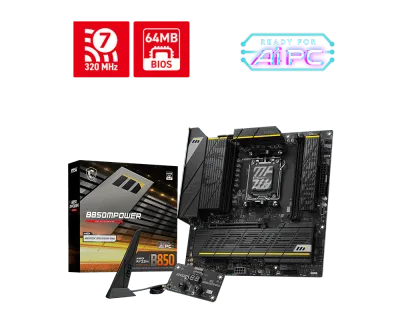

B850MPOWER

WiFi

WiFi 7

Sockel

AM5

Chipset

AMD B850

M.2-platser

4

Ethernet

5 Gigabit

Max minne

128 GB

PCIe-platser

1x PCI-E x16 slot 1x PCI-E x4 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processors)

SATA-portar

2

Ljudkodek

Realtek ALC4080

Dimensioner

244 244 mm

Formfaktor

Micro ATX

Minnestyp

DDR5

Minnesplatser

2

Displayutgångar

1x HDMI Support HDMI 2.1 FRL, maximum resolution of 8K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Max minneshastighet

10200 MHz

Övriga specifikationer

USB

4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear)

RAID

• Supports RAID 0 and RAID 1 for SATA storage devices • Supports RAID 0, RAID 1 RAID 5* and RAID 10 for M.2 NVMe storage devices *RAID 5 configuration is only supported by Ryzen 9000 series processors.

Internal IO

1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 2x Direct OC Jumper (JBCLK) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports

LED FEATURE

4x EZ Debug LED 1x EZ Memory Detection LED

BACK PANEL PORTS

Clear CMOS Button HDMI 5G LAN USB 10Gbps Type-A Wi-Fi / Bluetooth Audio Connectors Flash BIOS Button USB 10Gbps Type-A USB 10Gbps Type-C USB 5Gbps Type-A USB 20Gbps Type-C Optical S/PDIF Out

OPERATING SYSTEM

Support for Windows 11 64-bit
