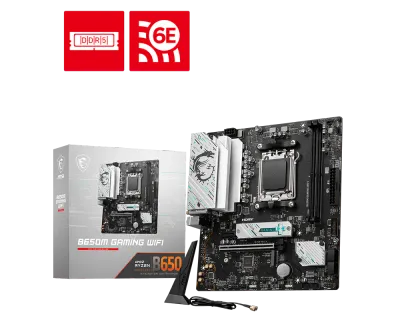

B650M GAMING WIFI

WiFi

WiFi 6

Sockel

AM5

Chipset

AMD B650

M.2-platser

2

Ethernet

2.5 Gigabit

Max minne

128 GB

PCIe-platser

1x PCI-E x16 slot Supports x16/x1 • Supports x16/x4 (For Ryzen 9000/ 7000 Series processors) • Supports x8/x4 (For Ryzen 8700/ 8600/ 8400 Series processors) • Supports x4/x4 (For Ryzen 8500/ 8300 Series processors) 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)

SATA-portar

4

Ljudkodek

Realtek ALC897

Dimensioner

226 244 mm

Formfaktor

Micro ATX

Minnestyp

DDR5

Minnesplatser

2

Displayutgångar

1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Övriga specifikationer

USB

2x USB 2.0 (Rear) 4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 1x USB 5Gbps Type C (Rear) 4x USB 5Gbps Type A (Front)

RAID

Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices

Internal IO

1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports

LED FEATURE

4x EZ Debug LED

BACK PANEL PORTS

DisplayPort HDMI USB 3.2 Gen 1 5Gbps (Type-A) 2.5G LAN Wi-Fi / Bluetooth Audio connectors Flash BIOS Button USB 3.2 Gen 1 5Gbps (Type-C) USB 3.2 Gen 1 5Gbps (Type-A) USB 2.0

OPERATING SYSTEM

Support for Windows 11 64-bit, Windows 10 64-bit
