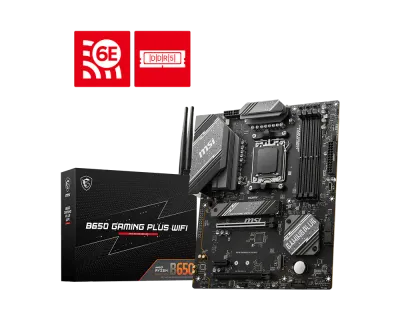

B650 GAMING PLUS WIFI

WiFi

WiFi 6

Sockel

AM5

Chipset

AMD B650

M.2-platser

2

Max minne

256 GB

PCIe-platser

2x PCI-E x16 slot • Supports x16/x4 (For Ryzen 9000/ 7000 Series processors) • Supports x8/x4 (For Ryzen 8700/ 8600/ 8400 Series processors) • Supports x4/x4 (For Ryzen 8500/ 8300 Series processors) 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

SATA-portar

4

Ljudkodek

Realtek ALC897

Dimensioner

244 305 mm

Formfaktor

ATX

Minnestyp

DDR5

Minnesplatser

4

Övriga specifikationer

USB

4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear)

RAID

Supports RAID 0, RAID 1 and RAID 1 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

Multi-GPU

AMD MULTI-GPU Support

Internal IO

1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports

LED FEATURE

4x EZ Debug LED

BACK PANEL PORTS

DisplayPort 2.5G LAN USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 1 5Gbps (Type-A) Wi-Fi / Bluetooth Audio connectors Flash BIOS Button HDMI USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2x2 20Gbps (Type-C)

OPERATING SYSTEM

Support for Windows 11 64-bit, Windows 10 64-bit
