MA88XE

WiFi

WiFi 6E

5 GHz

Ja

6 GHz

Ja

2,4 GHz

Ja

Bluetooth

Ja

Gränssnitt

PCIe

Anslutning

Wi-Fi + Bluetooth

Bluetooth-version

Bluetooth 5.4

Övriga specifikationer

Dimensions

120.8 x 80.2 x 21.5 mm / (4.76 x 3.16 x 0.85 in)

Environment

Operating Temperature: 0°C~40°C (32°F~104°F) / Operating Humidity: 10%~90% Non-Condensing / Storage Humidity: 5%~90% Non-Condensing

WiFi Speeds

2402 Mbps on 6 GHz / 2402 Mbps on 5 GHz / 574 Mbps on 2.4 GHz

Antenna Type

2x Detachable High-Performance Omnidirectional Antennas

Package Contents

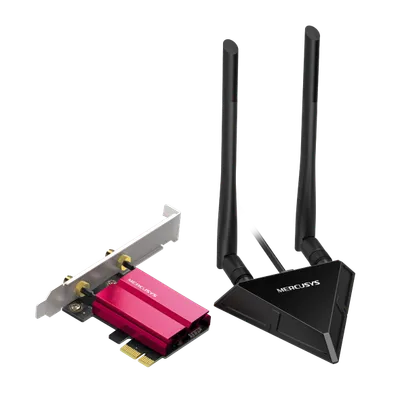

AXE5400 Wi-Fi 6E Bluetooth 5.3 PCle Adapter (ΜΑ88XΕ) / Magnetized Antenna Base with 1m RF Cable / 2x High-Performance Antennas / Low-Profile Bracket / Bluetooth Header Cable / Quick Installation Guide / Resource CD

Wireless Security

WPA-PSK/WPA2-PSK/WPA3-SAE

System Requirements

Supported operating systems include Windows 10, 11(64-bit)

Reception Sensitivity

6 GHz: / 11ax HE40 MCS0:-86 dBm / 11ax HE160 MCS11:-48 dBm / 5 GHz: / 11ax HE80 MCS0: -88 dBm / 11ax HE80 MCS11: -56 dBm / 11a 54Mbps: -75 dBm / 11ac VHT80 MCS0: -90dBm / 11ac VHT80 MCS9: -62dBm / 2.4 GHz: / 11ax HE40 MCS0: -91 dBm / 11ax HE40 MCS11: -60 dBm / 11g 54Mbps: -76 dBm / 11n HT40 MCS7: -70dBm
