WiFi

WiFi 7

5 GHz

Ja

6 GHz

Ja

2,4 GHz

Ja

Bluetooth

Ja

Gränssnitt

PCIe

Anslutning

Wi-Fi + Bluetooth

Bluetooth-version

Bluetooth 5.4

Övriga specifikationer

Dimensions

120.8 x 80.2x 21.5 mm (4.8 x 3.16 x 0.85 in )

Environment

Operating Temperature: 0°C~40°C (32°F~104°F) / Operating Humidity: 10%~90% Non-Condensing / Storage Humidity: 5%~90% Non-Condensing

WiFi Speeds

5765 Mbps on 6 GHz / 2882 Mbps on 5 GHz / 688 Mbps on 2.4 GHz

Antenna Type

2x High-Performance Omnidirectional Antennas

Package Contents

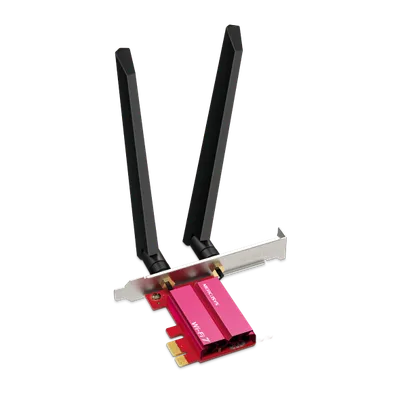

BE9300 Wi-Fi 7 Bluetooth 5.4 PCIe Adapter (MA47BE) / 2x Antennas / Low-Profile Bracket / Bluetooth Header Cable / Quick Installation Guide / Resource CD

Wireless Security

WPA-PSK/WPA2-PSK/WPA3-SAE

System Requirements

Compatible with Intel-based Windows 11/10 (64-bit) only. Does not support AMD platforms.

Reception Sensitivity

2.4 GHz: / 11g 20M 6Mbps:-94 dBm / 11g 20M 54Mbps:-77 dBm / 11be EHT40 MCS0:-92 dBm / 11be EHT40 MCS11:-61 dBm / 5 GHz: / 11a 20M 6Mbps: -95 dBm / 11a 20M 54Mbps:-77 dBm / 11be EHT160 MCS0:-86 dBm / 11be EHT160 MCS11:-55 dBm / 6 GHz: / 11be EHT320 MCS0:-83 dBm / 11be EHT320 MCS11:-52 dBm
