Vikt

5 kg

Front I/O

USB 3.2 Gen 1 Type-A x1, USB 3.2 Gen 2 Type-C x1, Headset Audio Jack x1

Chassityp

Mini Tower

Material

SPCC Steel, Tempered Glass

Dimensioner

370mm x 186mm x 295mm(depth/width/height)

Formfaktor

Mini-ITX / Micro-ATX

Max 120 mm-fläktar

5

Max 140 mm-fläktar

4

2.5"-fack

3

3.5"-fack

1

Max GPU-längd

363 mm

Max PSU-längd

180 mm

Sidopanel

Tempered Glass

Expansionsplatser

4

Max kylarhöjd

164 mm

Radiatorstöd (topp)

240mm

Övriga specifikationer

Top

2 x 120mm / 2 x 140mm

2.5"

up to 3,depends on other hardware configurations

3.5"

up to 1,depends on other hardware configurations

Rear

1 x 120mm / 1 x 92mm

Bottom

2 x 120mm / 2 x 140mm,depends on other hardware configurations

Model Name

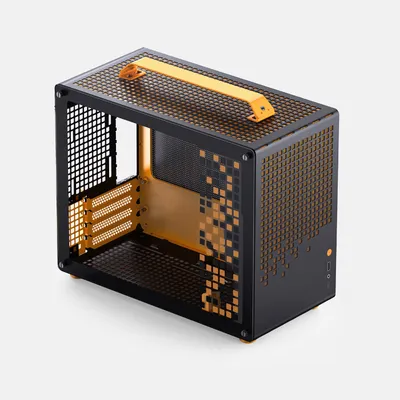

Z20 Orange/Black V1.0

DRIVE BAYS 2.5"

up to 3,depends on other hardware configurations

DRIVE BAYS 3.5"

up to 1,depends on other hardware configurations

FAN SUPPORT Top

2 x 120mm / 2 x 140mm

SFX PSU Support

SFX / SFX-L

FAN SUPPORT Rear

1 x 120mm / 1 x 92mm

KEY SPECS Weight

N.W. 5kg / G.W. 6.5kg

FAN SUPPORT Bottom

2 x 120mm / 2 x 140mm,depends on other hardware configurations

Headset Audio Jack

1

USB 3.2 Gen 1 Type-A

1

USB 3.2 Gen 2 Type-C

1

MODEL NAME Model Name

Z20 Orange/Black V1.0

KEY SPECS Case Material

SPCC Steel, Tempered Glass

KEY SPECS Expansion Slots

4

KEY SPECS Motherboard Support

Mini-ITX / Micro-ATX

FRONT I/O PORTS Headset Audio Jack

1

FRONT I/O PORTS USB 3.2 Gen 1 Type-A

1

FRONT I/O PORTS USB 3.2 Gen 2 Type-C

1

COMPATIBILITY & CLEARANCE GPU Clearance

Up to 363mm, depends on other hardware configurations (Refer to page 11)

COMPATIBILITY & CLEARANCE SFX PSU Support

SFX / SFX-L

COMPATIBILITY & CLEARANCE Radiator Clearance

Top，up to 240mm

COMPATIBILITY & CLEARANCE ATX PS2 PSU Clearance

Up to 180mm, recommended length ≤140mm,depends on other hardware configurations (Refer to page 11)

COMPATIBILITY & CLEARANCE CPU Air Cooler Clearance

164mm MAX（Intel CPU）or 163mm MAX（AMD CPU）

DIMENSIONS(with handle/feet and other protrusions)

382mm x 198mm x 335mm(depth/width/height)

KEY SPECS DIMENSIONS(w/o handle/feet and other protrusions)

370mm x 186mm x 295mm(depth/width/height)

KEY SPECS DIMENSIONS(with handle/feet and other protrusions)

382mm x 198mm x 335mm(depth/width/height)
