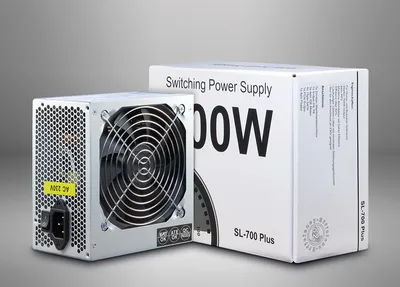

SL-700 PLUS

Fläktstorlek

120 mm

Dimensioner

86 150 140 mm

Effektivitet

20% / 88.8% / 50% / 89.1% / 100% / 85.3%

Formfaktor

ATX

Övriga specifikationer

18A

18A | 24A | 0.8A | 2.5A | REMOTE | P.G. | RETURN

MAX

150W | 540W | 9.6W | 12.5W | -

230V

3A | 50-60Hz

S-ATA

4x

Floppy

1x

Output

700Watt

Weight

net = 1.12kgs | gross = 1.45kgs

EAN-Code

4260133129115

Safeties

OVP, SCP , OCP, OS

EU palett

280 Pcs

Guarantee

24 months

Efficiency

at 20%88.8% at 50%89.1% at 100%85.3% at 20%88.8% at 50%89.1% at 100%85.3% at 20%88.8%at 50%89.1%at 100%85.3%

ATX-Version

2.4

Description

SL-700 PLUS - The consequent development of the SL-700 | The SL-700 PLUS provides the customers with a high efficiency of at least 82% and therefore protects environment and wallet. | With four S-ATA-, three Molex-, two PCIe 6+2pin-, one 4+4pin- and one 20+4pin- connectors the power supply offers a lot of options for configuration. The SL-700 PLUS finds its usage in older and new computer systems.

Fan control

auto

Item number

88882141

Noise level

19-25dB

Fans / -size

1x 120mm

Packing Unit

10 Pcs

DC = | Output

+ 3.3V | + 5V | + 12V1 | + 12V2 | - 12V | + 5VSB | PS-ON | POK | COM

Shipping Unit

1 Pcs

IDE 4Pin (Molex)

3x

Dimension (h/w/d)

86 x 150 x 140mm

Mainboard 20+4Pin

1x

Scope of delivery

Power supply SL-700 PLUS | Retail package | Manual | Power cable | Velcro cable ties

PCI-Express 6+2Pin

2x

AC ~ | Input VOLTAGE

CURRENT | FREQUENCY

4Pin / 4+4Pin / 8Pin 12V

/ /
