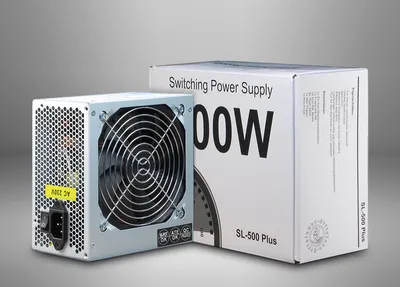

SL-500 PLUS

Fläktstorlek

120 mm

Dimensioner

86 150 140 mm

Effektivitet

20% / 84.4% / 50% / 86.1% / 100% / 84.0%

Formfaktor

ATX

Övriga specifikationer

15A

16A | 30A | 0.8A | 2.5A | REMOTE | P.G. | RETURN

MAX

120W | 360W | 9.6W | 12.5W | -

230V

3A | 50-60Hz

S-ATA

4x

Floppy

1x

Output

500Watt

Weight

net = 1.08kgs | gross = 1.41kgs

EAN-Code

4260133129108

Safeties

OVP, SCP , OCP, OS

Warranty

24 months

EU palett

280 Pcs

Efficiency

at 20%84.4% at 50%86.1% at 100%84.0% at 20%84.4% at 50%86.1% at 100%84.0% at 20%84.4%at 50%86.1%at 100%84.0%

ATX-Version

2.4

Description

SL-500 PLUS - The consequent development of the SL-500. | The SL-500 PLUS provides the customers with a high efficiency of at least 82% and therefore protects environment and wallet. | With four S-ATA- and three Molex-connectors, PCIe 6+2pin-, 4+4pin and 20+4pin- connectors the power supply offers a lot of options for configuration. The SL-500 PLUS finds its usage in older and new computer systems.

Fan control

auto

Item number

88882140

Noise level

19-25dB

Fans / -size

1x 120mm

Packing Unit

10 Pcs

DC = | Output

+ 3.3V | + 5V | + 12V | - 12V | + 5VSB | PS-ON | POK | COM

Shipping Unit

1 Pcs

IDE 4Pin (Molex)

3x

Dimension (h/w/d)

86 x 150 x 140mm

Mainboard 20+4Pin

1x

Scope of delivery

Power supply SL-500 PLUS | Retail package | Manual | Power cord | Velcro cable ties

PCI-Express 6+2Pin

1x

AC ~ | Input VOLTAGE

CURRENT | FREQUENCY

4Pin / 4+4Pin / 8Pin 12V

/ /
