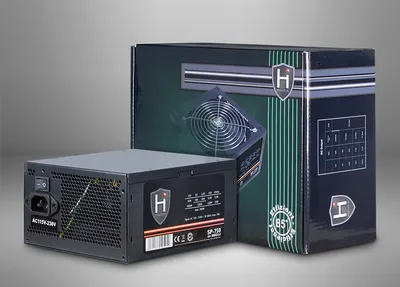

HIPOWER SP-750

Fläktstorlek

140 mm

Effekt

750 W

Dimensioner

86 150 160 mm

Effektivitet

20% / 84.80% / 50% / 86.60% / 100% / 83.30%

Formfaktor

ATX

Övriga specifikationer

S-ATA

6x

Floppy

1x

Output

750Watt

Weight

net = 1.48kgs | gross = 1.82kgs

AC Input

100V/240V 50-60Hz max. 10A

EAN-Code

4260133125940

Safeties

OPP, OVP, SCP

DC Output

+ 3.3V | + 5V | + 12V | - 12V | + 5VSB

EU palett

280 Pcs

Guarantee

24 months

Efficiency

at 20%84.80% at 50%86.60% at 100%83.30% at 20%84.80% at 50%86.60% at 100%83.30% at 20%84.80%at 50%86.60%at 100%83.30%

ATX-Version

2.4

Description

HiPower SP-750 - high power, low cost | The 750W version of the HiPower series reliably supplies power-hungry systems with electricity and also saves electricity costs. With an efficiency of over 85%, the powerloss is kept low, which is clearly reflected in the power consumption. | With 60A on the 12V line, there is more than enough power available for potent hardware, which is protected from damage by the built-in protective circuits (OPP, OVP and SCP) in all cases. | The powerful 140mm fan reliably ensures proper cooling of the power supply and the multitude of connections round off the overall package. | over 85% efficiency | 60A on the 12V line | OPP, OVP, SCP | powerful 140mm fan

Fan control

auto

Item number

88882112

Noise level

19-35dB

Fans / -size

1x 140mm

Packing Unit

5 Pcs

Shipping Unit

1 Pcs

Full Range Input

auto

IDE 4Pin (Molex)

6x

PCI-Express 6Pin

1x

Dimension (h/w/d)

86 x 150 x 160mm

Mainboard 20+4Pin

1x

Scope of delivery

Power supply HiPower SP-750 | Retail package | Manual (german) | Power cord | Mounting screws | Cable ties

PCI-Express 6+2Pin

1x

SP-750 Max. | Current

20A | 18A | 60A | 0.3A | 2.2A

Max. | Combined | Power

120W | 620W | 3.6W | 11W

4Pin / 4+4Pin / 8Pin 12V

/ /
