HIPOWER SP-650

Fläktstorlek

120 mm

Effekt

650 W

Dimensioner

86 150 140 mm

Effektivitet

20% / 82.50% / 50% / 85.50% / 100% / 83.70%

Formfaktor

ATX

Övriga specifikationer

S-ATA

4x

Floppy

1x

Output

650Watt

Weight

net = 1.14kgs | gross = 1.49kgs

AC Input

100V/240V 50-60Hz max. 10A

EAN-Code

4260133125933

Safeties

OPP, OVP, SCP

DC Output

+ 3.3V | + 5V | + 12V | - 12V | + 5VSB

EU palett

280 Pcs

Guarantee

24 months

Efficiency

at 20%82.50% at 50%85.50% at 100%83.70% at 20%82.50% at 50%85.50% at 100%83.70% at 20%82.50%at 50%85.50%at 100%83.70%

ATX-Version

2.4

Description

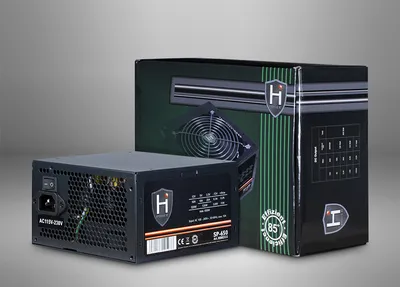

HiPower SP-650 - high power, low cost | The 650W version of the HiPower series reliably supplies power-hungry systems with electricity and also saves electricity costs. With an efficiency of over 85%, the power loss is kept low, which is clearly reflected in the power consumption. | With 50A on the 12V line, there is more than enough power available for potent hardware, which is protected from damage by the built-in protective circuits (OPP, OVP and SCP) in all cases. | The powerful 120mm fan reliably ensures proper cooling of the power supply and the multitude of connections round off the overall package. | over 85% efficiency | 50A on the 12V line | OPP, OVP, SCP | powerful 120mm fan

Fan control

auto

Item number

88882111

Noise level

19-35dB

Fans / -size

1x 120mm

Packing Unit

10 Pcs

Shipping Unit

1 Pcs

Full Range Input

auto

IDE 4Pin (Molex)

4x

Dimension (h/w/d)

86 x 150 x 140mm

Mainboard 20+4Pin

1x

Scope of delivery

Power supply HiPower SP-650 | Retail package | Manual (german) | Power cord | Mounting screws | Cable ties

PCI-Express 6+2Pin

1x

SP-650 Max. | Current

20A | 18A | 50A | 0.3A | 2.2A

Max. | Combined | Power

120W | 520W | 3.6W | 11W

4Pin / 4+4Pin / 8Pin 12V
