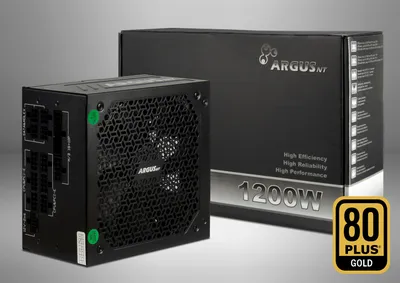

HA-1200BA4

Modulär

Fully Modular

Effekt

1200 W

ATX-version

ATX 3.1

Effektivitet

80 PLUS Gold

Formfaktor

ATX

Skydd

Overload protection Overvoltage protection Overcurrent protection Short-circuit protection No Load protection Temperature protection | + + + + + +

Övriga specifikationer

Output

Output voltages + 3.3V | + 5V | + 12V | - 12V | + 5Vsb Total rated power Rated power 3.3V + 5V Rated power 12VHPWR Voltage tolerance Ripple/ Noise | Rated current max. 20A | max. 20A | max. 100A | max. 0.3A | max. 3A max. 1200W max. 120W max. 600W +/- 5% <50mV @ +3.3V, +5V, +5Vsb | <120mV @ +12V, -12V

Safety

Overload protection Overvoltage protection Overcurrent protection Short-circuit protection No Load protection Temperature protection | + + + + + +

Features

1200Watt power supply | Intel ATX 3.1 standard | 80PLUS Gold | 12VHPWR connector up to 600W | Traditional PCIe connections for older graphics cards | Intelligent fan control | Numerous connections for mainboard, drives and peripherals | All connection cables completely black

Warranty

5 years

Connectors

Mainboard 20+4pin CPU 4+4pin PCIe 12VHPWR PCIe 6+2pin SATA 15pin IDE/ Molex 4pin Floppy 4pin | 1 2 1 3 8 3 1

Logistic data

Dimension Net weight Gross weight Article number GTIN Packing unit | 150 x 165 x 86 mm 1.625 kg 2.880 kg 88882236 4260455649025 1 pcs | 5 pcs (carton)

Scope of delivery

Power supply | Power cord | Connection cables | Screws | Cable ties | Manual

Economic data: @ 20% load

92.50 %

Economic data: @ 50% load
