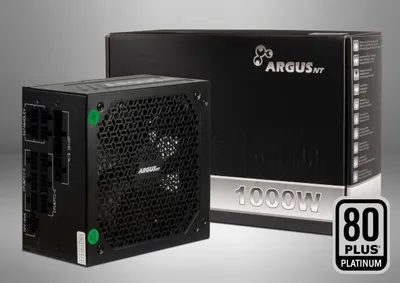

HA-1000BA3

Modulär

Fully Modular

Effekt

1000 W

ATX-version

ATX 3.1

Effektivitet

80 PLUS Platinum

Formfaktor

ATX

Skydd

Overload protection Overvoltage protection Overcurrent protection Short-circuit protection No load protection Temperature protection | + + + + + +

Övriga specifikationer

Output

Outputvoltage + 3.3V | + 5V | + 12V | - 12V | + 5Vsb Total rated power Rated power 3.3V + 5V Rated power 12V-2x6 (12VHPWR) Voltage tolerance Ripple/ Noise | Rated current max. 20A | max. 20A | max. 83A | max. 0.3A | max. 3A max. 1000W max. 120W max. 600W +/- 5% <40mV @ +3.3V, +5V | < 50mV @ +5Vsb | <60mV @ +12V | < 80mV @ -12V

Safety

Overload protection Overvoltage protection Overcurrent protection Short-circuit protection No load protection Temperature protection | + + + + + +

Features

1000Watt power supply | Intel ATX 3.1 Standard | 80PLUS Platinum | 12V-2x6 (12VHPWR) connector up to 600W | Traditional PCIe connectors for older graphics cards | Intelligent fan control | Numerous connectors for motherboard, drives, and peripherals | All connection cables completely black

Warranty

3 years

Connectors

Mainboard 20+4pin CPU 4+4pin PCIe 12V-2x6 (12VHPWR) PCIe 6+2pin SATA 15pin IDE/ Molex 4pin Floppy 4pin | 1 2 1 3 8 3 1

Logistic data

Dimension Net weight Gross weight Article number GTIN Packing unit | 150 x 165 x 86 mm 1.590 kgs 3.040 kgs 88882250 4260455649926 1 pcs | 5 pcs (carton)

Scope of delivery

Power supply | Power cord | Secundary cables | Screws | Cable ties | Manual

Economic data: @ 20% power

91.90 %

Economic data: @ 50% power

93.40 %

Input Input voltage Frequency Current

AC 100 - 240 V~ 47 - 63Hz 12A @110V | 56 @230V

Economic data: @ 100% power Standby MTBF

92.10 % < 0.50 W 100,000 hrs @ 25°C

Economic data: Efficiency @230V @ 10% power

90.40 %

Environmantal Temperature | Humidity | Altitude

0°C - 40°C (operating) | -20°C - 90°C (storage) up to 85% (operating, not condensing) | up to 95% (storage, not condensing) 0 - 5000m (operating) | 0 - 5000m (storage)
