GW-CRPS-1300

Effekt

1300 W

Effektivitet

89.62%

Skydd

Over power protection Over voltage protection Over current protection Short circuit protection Temperature protection | + + + + +

Övriga specifikationer

Output

Voltage + 12V + 12Vsb Total rated power Voltage tolerance Ripple/ Noise | Rated current max. 107A max. 3A max. 1300W +/- 5% <120mV @ +12V, -12Vsb

Safety

Over power protection Over voltage protection Over current protection Short circuit protection Temperature protection | + + + + +

Features

1300W CRPS module | Intel CRPS form factor | 80PLUS Platinum

Warranty

5 years

Description

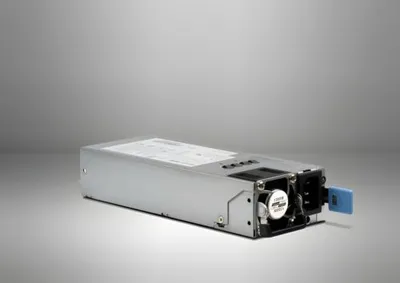

Great Wall CRPS 1300W Power Supply GW-CRPS-1300 | High-performance and compact Great Wall CRPS 1300W server power supply for professional server and storage systems. | This CRPS (Common Redundant Power Supply) power supply is specifically designed for use in compatible server platforms. | Compatible with the Great Wall CRPS chassis GW-BKPV2CB (Item No. 88887428)

Logistic data

Dimensions Net weight Gross weight Article number GTIN Packing unit | 185 x 73,5 x 39 mm 0.860 kgs 0.920 kgs 88887431 4262531060045 1 pc | 10 pcs (carton)

Scope of delivery

Power supply module

Economic data: @ 20% power

93.29 %

Economic data: @ 50% power

94.52 %
