GW-BKPV2CB

Modulär

Modular

Effekt

2000 W

Övriga specifikationer

Output

Voltage + 12V - 12V 5V 3.3V 5Vsb Total rated power | Rated current up to 166A depending on the modules used max. 0.5A max. 25A max. 25A 3A max. 2000W depending on the modules used

Features

For modules up to 2000W | Intel CRPS form factor | 12V-2x6 connector | Modular cable management

Warranty

5 years

Connectors

Mainboard CPU 4+4 GPU 12V-2x6 PCIe SATA Molex LED Alarm reset I2C Bus | 1x 20+4Pin 2x 4+4Pin 1x 2x 6+2Pin 2x 3x15Pin 2x 3x4Pin 1 1 1

Input Voltage

12V=

Logistic data

Dimension Net weight Gross weight Article number GTIN Packing unit | 225 x 77 x 84 mm 1.140 kgs 1.300 kgs 88887428 4262531060076 1 pc | 10 pcs (carton)

Scope of delivery

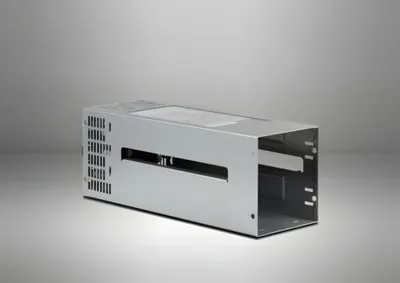

Power supply chassis

Environmental Temperature | Humidity | Altitude

0°C - 55°C (operating) | -40°C - 70°C (storage, non condensing) bis zu 85% (operating) | bis zu 95% (storage, non condensing) 0 - 5000m (operating) | 0 - 15000m (storage)
