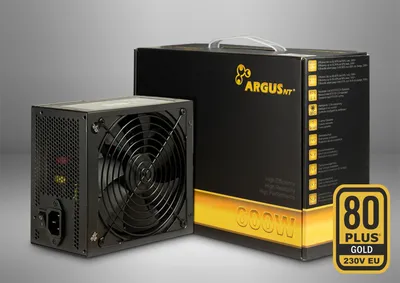

Argus GPS-600

Fläktstorlek

140 mm

Effekt

600 W

Dimensioner

86 150 160 mm

Effektivitet

80 PLUS Gold

Formfaktor

ATX

Övriga specifikationer

S-ATA

6x

Floppy

1x

Output

600Watt

Weight

net = 1.96kgs | gross = 2.30kgs

AC Input

100V/240V 47-63Hz max. 8/4A

EAN-Code

4260455645287

Safeties

OPP, SCP , OVP, OCP, NLP

Warranty

60 months

DC Output

+ 3.3V | + 5V | + 12V | - 12V | + 5VSB

EU palett

210 Pcs

Efficiency

at 10% 115V87.4% at 10% 230V88.9% at 20% 115V90.6% at 20% 230V92.1% at 50% 115V90.6% at 50% 230V92.9% at 100% 115V87.2% at 100% 230V90.5% at 10% 115V87.4% at 10% 230V88.9% at 20% 115V90.6% at 20% 230V92.1% at 50% 115V90.6% at 50% 230V92.9% at 100% 115V87.2% at 100% 230V90.5% at 10% 115V87.4% at 10% 230V88.9% at 10% 230V88.9%at 20% 115V90.6% at 20% 230V92.1% at 20% 230V92.1%at 50% 115V90.6% at 50% 230V92.9% at 50% 230V92.9%at 100% 115V87.2% at 100% 230V90.5% at 100% 230V90.5%

ATX-Version

2.4

Fan control

auto

Item number

88882181

Noise level

< 65°C 0dB | > 65°C 23.2-34.5dB

Fans / -size

1x 140mm

Packing Unit

5 Pcs

Shipping Unit

1 Pcs

Full Range Input

auto

IDE 4Pin (Molex)

3x

Dimension (h/w/d)

86 x 150 x 160mm

Mainboard 20+4Pin

1x

Scope of delivery

Power supply Argus GPS-600 | Retail package | Manual (german, english) | Power cord | Screws | Cable ties

PCI-Express 6+2Pin

4x

80PLUS® Certificate

80PLUS® Gold

GPS-600 Max. | Current

20A | 50A | 0.3A | 2.5A

Max. | Combined | Power

100W | 600W | 3.6W | 12.5W

4Pin / 4+4Pin / 8Pin 12V

/ 2x /
