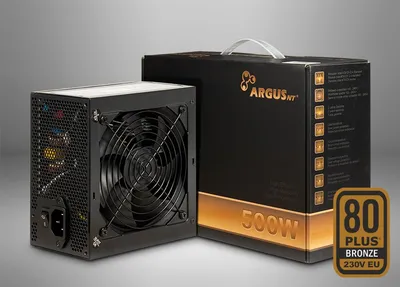

Argus BPS-500

Fläktstorlek

120 mm

Effekt

500 W

Dimensioner

86 150 140 mm

Effektivitet

80 PLUS Bronze

Formfaktor

ATX

Övriga specifikationer

S-ATA

6x

Floppy

1x

Output

500Watt

Weight

net = 1.67kgs | gross = 2.02kgs

AC Input

100V/240V 47-63Hz max. 7/3.5A

EAN-Code

4260455645249

Safeties

OPP, SCP , OVP, OCP, NLP

Warranty

36 months

DC Output

+ 3.3V | + 5V | + 12V | - 12V | + 5VSB

EU palett

210 Pcs

Efficiency

at 20%80.5% at 20%85.3% at 50%88.4% at 100%85.3% at 20%80.5% at 20%85.3% at 50%88.4% at 100%85.3% at 20%80.5%at 20%85.3%at 50%88.4%at 100%85.3%

ATX-Version

2.4

Fan control

auto

Item number

88882177

Noise level

22.1-37.5dB

Fans / -size

1x 120mm

Packing Unit

5 Pcs

Shipping Unit

1 Pcs

Full Range Input

auto

IDE 4Pin (Molex)

3x

Dimension (h/w/d)

86 x 150 x 140mm

Mainboard 20+4Pin

1x

Scope of delivery

Power supply Argus BPS-500 | Retail package | Manual (german, english) | Power cord | Screws | Cable ties

PCI-Express 6+2Pin

2x

80PLUS® Certificate

80PLUS® Bronze

BPS-500 Max. | Current

15A | 41A | 0.3A | 2.5A

Max. | Combined | Power

100W | 420W | 3.6W | 12.5W

4Pin / 4+4Pin / 8Pin 12V

/ /
