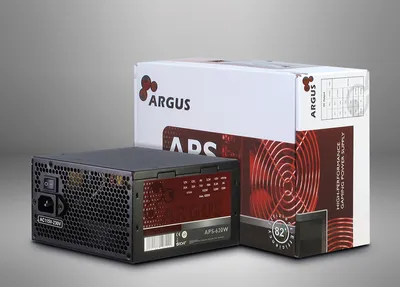

Argus APS-620W

Fläktstorlek

120 mm

Effekt

620 W

Dimensioner

86 150 140 mm

Effektivitet

20% / 85.4% / 50% / 86.3% / 100% / 85.5%

Formfaktor

ATX

Övriga specifikationer

S-ATA

4x

Floppy

1x

Output

620Watt

Weight

net = 1.28kgs | gross = 1.62kgs

AC Input

115 - 230V 47-63Hz

EAN-Code

4260133126022

Safeties

OVP, SCP , OPP, UVP, OS

DC Output

+ 3.3V | + 5V | + 12V1 | + 12V2 | - 12V | + 5VSB

EU palett

280 Pcs

Guarantee

24 months

Efficiency

at 20%85.4% at 50%86.3% at 100%85.5% at 20%85.4% at 50%86.3% at 100%85.5% at 20%85.4%at 50%86.3%at 100%85.5%

ATX-Version

2.31

Description

The Argus APS-620W - ideal for sophisticated office and gaming solutions | The Argus APS-620W provides the customers with a high efficiency of at least 82% and therefore protects environment and wallet. | Thanks to the efficient construction and the ideal configured connector layout the APS-620W provides with sufficient performance for the connected components. | The yellow 120mm fan works silently and ensures an optimal cooling of the power supply.

Fan control

auto

Item number

88882118

Noise level

19-21dB

Fans / -size

1x 120mm

Packing Unit

10 Pcs

Shipping Unit

1 Pcs

Full Range Input

auto

IDE 4Pin (Molex)

4x

Dimension (h/w/d)

86 x 150 x 140mm

Mainboard 20+4Pin

1x

Scope of delivery

Power supply Argus APS-620W | Retail package | Screws | Power cable | Manual | cable ties

PCI-Express 6+2Pin

1x

APS-620 Max. | Current

18A | 15A | 30A | 0.3A | 3A

Max. | Combined | Power

103W | 570W | 3.6W | 15W

4Pin / 4+4Pin / 8Pin 12V

/ /
