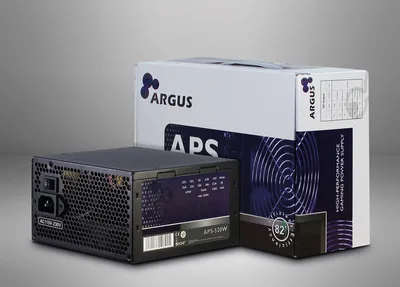

Argus APS-520W

Fläktstorlek

120 mm

Effekt

520 W

Dimensioner

86 150 140 mm

Effektivitet

20% / 84.4% / 50% / 86.1% / 100% / 84.0%

Formfaktor

ATX

Övriga specifikationer

S-ATA

4x

Floppy

1x

Output

520Watt

Weight

net = 1.10kgs | gross = 1.42kgs

AC Input

115 - 230V 47-63Hz

EAN-Code

4260133126015

Safeties

OVP, SCP , OPP, UVP, OS

DC Output

+ 3.3V | + 5V | + 12V1 | + 12V2 | - 12V | + 5VSB

EU palett

280 Pcs

Guarantee

24 months

Efficiency

at 20%84.4% at 50%86.1% at 100%84.0% at 20%84.4% at 50%86.1% at 100%84.0% at 20%84.4%at 50%86.1%at 100%84.0%

ATX-Version

2.31

Description

The Argus APS-520W - ideal for sophisticated office and gaming solutions | The Argus APS-520W provides the customers with a high efficiency of at least 82% and therefore protects environment and wallet. | Thanks to the efficient construction and the ideal configured connector layout the APS-520W provides with sufficient performance for the connected components. | The yellow 120mm fan works silently and ensures an optimal cooling of the power supply.

Fan control

auto

Item number

88882117

Noise level

19-21dB

Fans / -size

1x 120mm

Packing Unit

10 Pcs

Shipping Unit

1 Pcs

Full Range Input

auto

IDE 4Pin (Molex)

4x

Dimension (h/w/d)

86 x 150 x 140mm

Mainboard 20+4Pin

1x

Scope of delivery

Power supply Argus APS-520W | Retail package | Screws | Power cable | Manual | cable ties

PCI-Express 6+2Pin

1x

APS-520 Max. | Current

18A | 15A | 22A | 0.3A | 3A

Max. | Combined | Power

120W | 470W | 3.6W | 15W

4Pin / 4+4Pin / 8Pin 12V

/ /
