4U-4708-NVMe

Chassityp

Server

Medföljande fläktar

6x 80 mm fans

Övriga specifikationer

Warranty

24 Months

Backplane

Quantity Backplanes Quantity hard disks Data transfer rate SATA | SAS | NVMe Connection HDD | Connection Controller | Electrical connection | 1 4x NVMe-SSD (U.2/ U.3) or 4x SAS/SATA-SSD/HDD (2.5" or 3.5") | 4x SAS/SATA-SSD/HDD (2.5" or 3.5") | 6G | 12G | 16G 4x SFF8639 (U.2/U.3/SAS/SATA) | 4x SAS 2x SFF8654-8i (each for 2x NVMe U.2/U.3 SSD) | 2x SFF8643 (each for 4x SAS/SATA-SSD/HDD) 2x Molex

Size: Case

max. 330 x 305 mm 481 x 515 x 178 mm (WxDxH)

Description

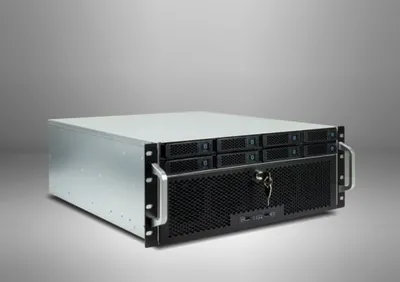

The IPC 4U-4708-NVMe is a service-friendly storage enclosure with 8 hot-swap removable frames. | The built-in backplane supports SAS and SATA drives in all slots, as well as NVMe drives with up to 16G in 4 slots. | Four 80 mm fans in the front of the case can be easily replaced by open the front flap. The fans are supplied with power centrally via a Molex connection. In addition, two 80 mm fans are installed in the rear panel, which together ensure a perfect air flow. | Choose here | the right data cable

Mounted fans

200mm 140mm 120mm 80mm 60mm | - - - 6 -

Logistic data

Net weight Gross weight Article number GTIN Packing unit | 10.215 kgs 12.290 kgs 88887423 4260455649193 1 pcs | 15 pcs (pallet)

Size: Mainboard

ITX, Micro-ATX, ATX, E-ATX, SSI CEB, SSI EEB

Front connectors

USB A 3.0 USB A 2.0 USB Type C Headphone Microphone Card Reader | - 2 - - - -
